B6605100 Lid, 9 modules

B6605100

Lid, 9 modules

Locking lid for protecting the display and operating elements.

Supply

1 lid

  • Usato per
  • Modifiche specifiche del cliente
B6505110 RAILTEC B, 9 modules, Vers. V

B6505110

RAILTEC B, 9 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505110

RAILTEC B, 9 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505111 RAILTEC B, 9 modules, Vers. I

B6505111

RAILTEC B, 9 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (52 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505111

RAILTEC B, 9 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

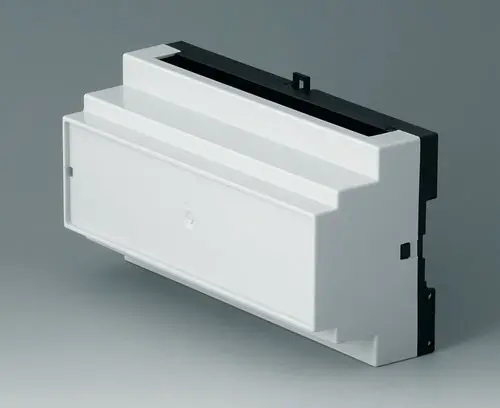

B6505112 RAILTEC B, 9 modules, Vers. II

B6505112

RAILTEC B, 9 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (4 x 13-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505112

RAILTEC B, 9 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

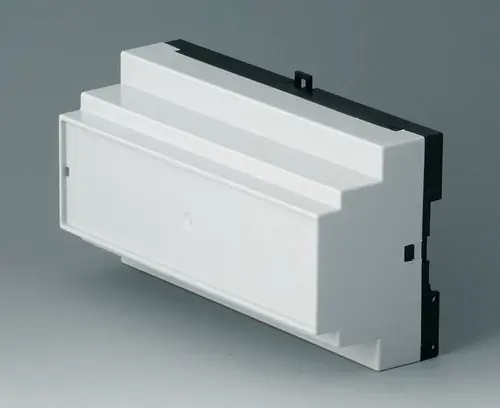

B6505113 RAILTEC B, 9 modules, Vers. III

B6505113

RAILTEC B, 9 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505113

RAILTEC B, 9 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

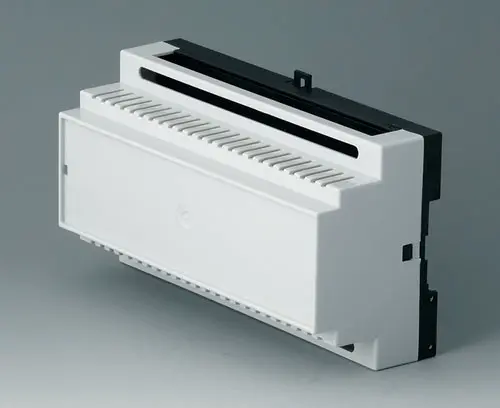

B6505114 RAILTEC B, 9 modules, Vers. I

B6505114

RAILTEC B, 9 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (52 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505114

RAILTEC B, 9 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

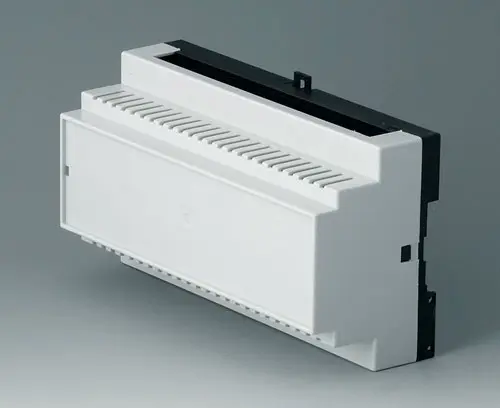

B6505115 RAILTEC B, 9 modules, Vers. II

B6505115

RAILTEC B, 9 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (4 x 13-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505115

RAILTEC B, 9 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

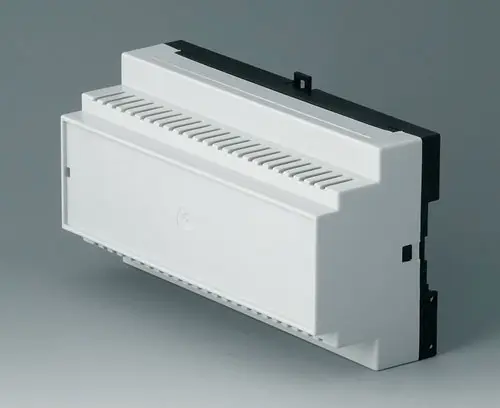

B6505116 RAILTEC B, 9 modules, Vers. III

B6505116

RAILTEC B, 9 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505116

RAILTEC B, 9 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

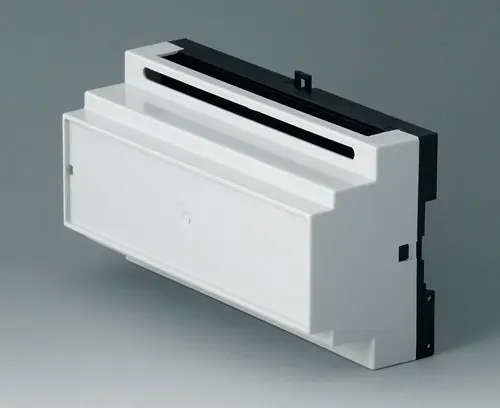

B6505117 RAILTEC B, 9 modules, Vers. IV

B6505117

RAILTEC B, 9 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (26 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505117

RAILTEC B, 9 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

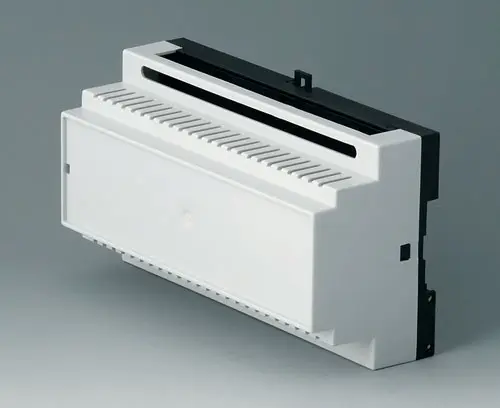

B6505118 RAILTEC B, 9 modules, Vers. IV

B6505118

RAILTEC B, 9 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (26 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505118

RAILTEC B, 9 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

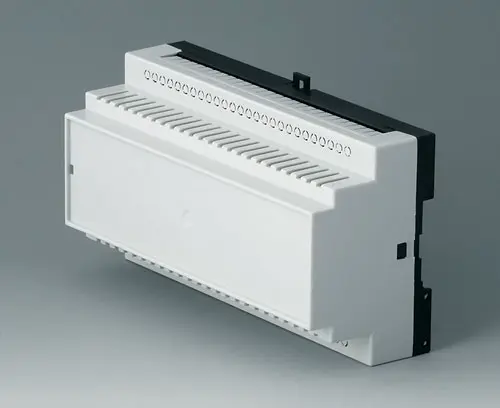

B6505119 RAILTEC B, 9 modules, Vers. V

B6505119

RAILTEC B, 9 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505119

RAILTEC B, 9 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505121 RAILTEC B, 9 modules, Vers. VI

B6505121

RAILTEC B, 9 modules, Vers. VI Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505121

RAILTEC B, 9 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x90x58mm

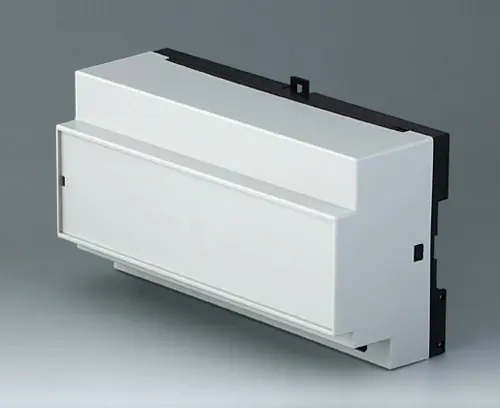

B6515111 RAILTEC B, 9 modules, Vers. XI

B6515111

RAILTEC B, 9 modules, Vers. XI Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (26 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6515111

RAILTEC B, 9 modules, Vers. XI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

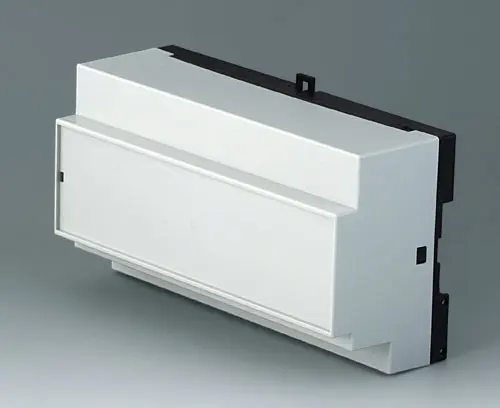

B6515112 RAILTEC B, 9 modules, Vers. XII

B6515112

RAILTEC B, 9 modules, Vers. XII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For plug header (2 x 13-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Chiudi

B6515112

RAILTEC B, 9 modules, Vers. XII
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

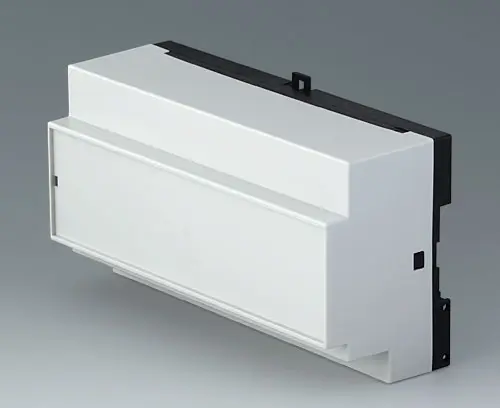

B6515113 RAILTEC B, 9 modules, Vers. XIII

B6515113

RAILTEC B, 9 modules, Vers. XIII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Chiudi

B6515113

RAILTEC B, 9 modules, Vers. XIII
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

Customising options for B6605100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
15 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
