B6701104 RAILTEC C, 2 modules, Vers. III

B6701104

RAILTEC C, 2 modules, Vers. III

Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version

Front open, connection side with extended case wall

Supply

1 bottom part, 2 clips, 1 top part

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "wall/holder"

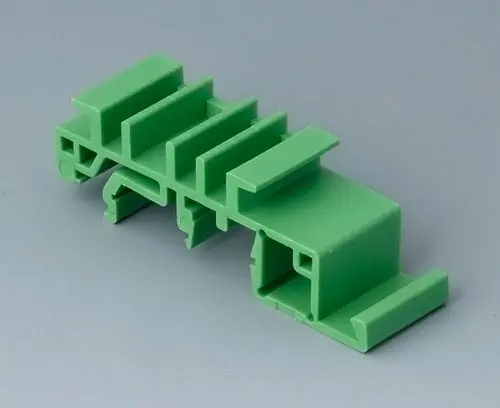

B6811542 Adapter

B6811542

Adapter Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).

Supply 1 piece

Chiudi

B6811542

Adapter
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
green

Accessory "terminals"

B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

Chiudi

B6601222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6601223 Plug header, block 5.08

B6601223

Plug header, block 5.08 Female terminal block, 5.08. 5-pin.

Supply 1 piece

Chiudi

B6601223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

Chiudi

B6606222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6606223 Plug header, block 5.08

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

Chiudi

B6606223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6801650 Terminal block, block 5.08

B6801650

Terminal block, block 5.08 PCB terminal block, 5.08. 6-pin.

Supply 1 piece

Chiudi

B6801650

Terminal block, block 5.08
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
light grey

Accessory

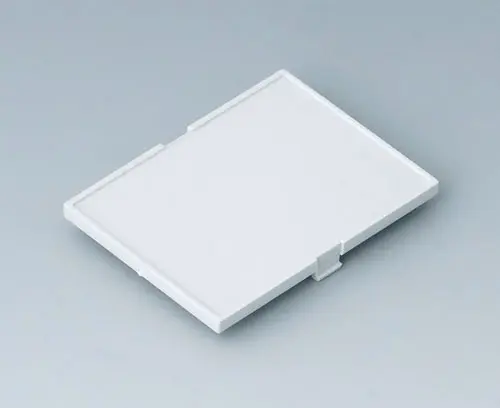

B6801100 Front panel, 2 modules

B6801100

Front panel, 2 modules Snap-in.

Supply 1 front panel

Chiudi

B6801100

Front panel, 2 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
32x42mm

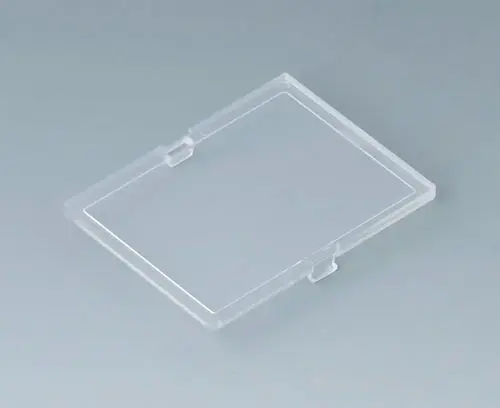

B6801200 Front panel, 2 modules

B6801200

Front panel, 2 modules Snap-in.

Supply 1 front panel

Chiudi

B6801200

Front panel, 2 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
32x42mm

Customising options for B6701104

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
Bottom and top part light grey,
Locking clip black/translucent
Standards
Width
36 mm
Height
90 mm
Depth
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 293 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
37 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
