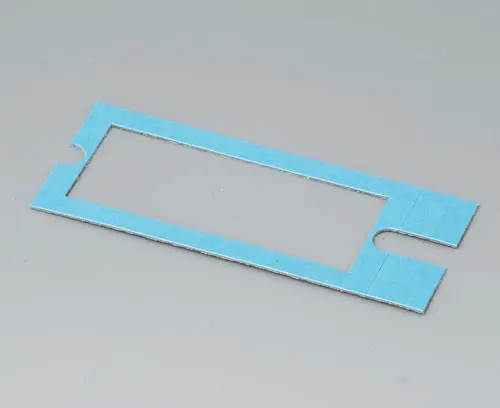

A9160006 Adhesive foil P/M
Scroll

A9160006

Adhesive foil P/M

Fastening the display window (A9060004, A9060005).

Supply

1 adhesive foil

Aggiungi al carrello Aggiungi al carrello Aggiungi al carrello
Prodotto aggiunto alla lista
continua o Vai al carrello
Crea scheda dati PDF

Create la vostra scheda dati PDF per A9160006

Selezionate le informazioni prodotto per la vostra scheda dati.

Chiudi
  • Usato per
A9060007 HAND-HELD-BOX P, Vers. I

A9060007

HAND-HELD-BOX P, Vers. I Design: Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9060007

HAND-HELD-BOX P, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
145x80x36,5mm
A9060009 HAND-HELD-BOX P, Vers. I

A9060009

HAND-HELD-BOX P, Vers. I Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9060009

HAND-HELD-BOX P, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
145x80x36,5mm
A9060017 HAND-HELD-BOX P, Vers. II

A9060017

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9060017

HAND-HELD-BOX P, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
145x80x36,5mm
A9060019 HAND-HELD-BOX P, Vers. II

A9060019

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9060019

HAND-HELD-BOX P, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
145x80x36,5mm
A9062017 HAND-HELD-BOX M, Vers. I

A9062017

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C) with contacts for soldering

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9062017

HAND-HELD-BOX M, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
145x80x38,5mm
A9062019 HAND-HELD-BOX M, Vers. I

A9062019

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C)

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9062019

HAND-HELD-BOX M, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
145x80x38,5mm

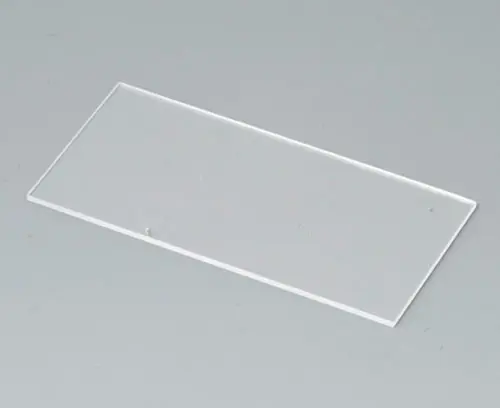

A9160004 Display window P

A9160004

Display window P The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

Chiudi

A9160004

Display window P
Prodotto aggiunto alla lista
Acrylic glass
transparent
60x30x1mm

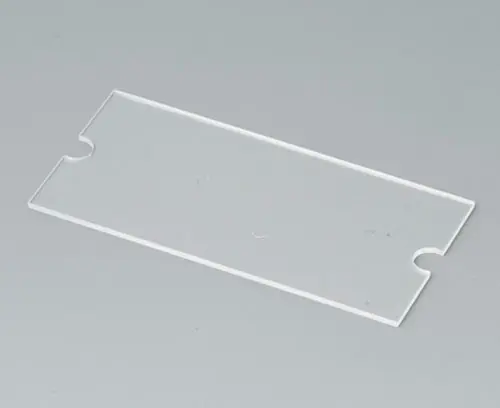

A9160005 Display window M

A9160005

Display window M The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

Chiudi

A9160005

Display window M
Prodotto aggiunto alla lista
Acrylic glass
transparent
60x30x1mm
  • Dati tecnici
  • Purchasing Data
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0,21 g
Customs tariff number
(OKW product)
39199080
Country of manufacture
Germany
