A9167002 Sealing L

A9167002

Sealing L

Application: for a higher protection class. For versions II - V.

Supply

1 Sealing kit

  • Usato per
A9067117 SMART-CASE L, Vers. II

A9067117

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Chiudi

A9067117

SMART-CASE L, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
140x62,7x30,5mm
IP 65 opt., IP 40

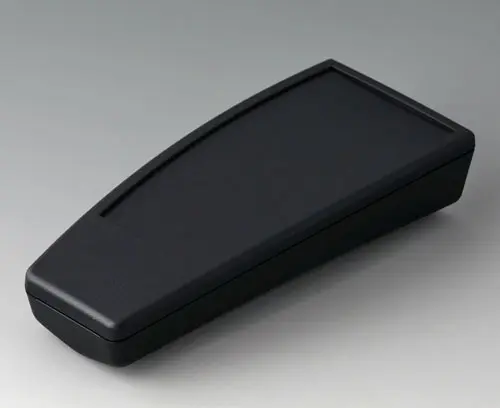

A9067119 SMART-CASE L, Vers. II

A9067119

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Chiudi

A9067119

SMART-CASE L, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067127 SMART-CASE L, Vers. III

A9067127

SMART-CASE L, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9067127

SMART-CASE L, Vers. III
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
140x62,7x30,5mm
IP 65 opt., IP 40
A9067129 SMART-CASE L, Vers. III

A9067129

SMART-CASE L, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9067129

SMART-CASE L, Vers. III
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067137 SMART-CASE L, Vers. IV

A9067137

SMART-CASE L, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9067137

SMART-CASE L, Vers. IV
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
140x62,7x30,5mm
IP 65 opt., IP 40

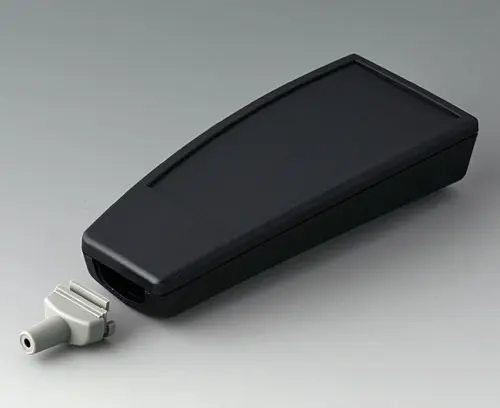

A9067139 SMART-CASE L, Vers. IV

A9067139

SMART-CASE L, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9067139

SMART-CASE L, Vers. IV
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067147 SMART-CASE L, Vers. V

A9067147

SMART-CASE L, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9067147

SMART-CASE L, Vers. V
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
140x62,7x30,5mm
IP 65 opt., IP 40

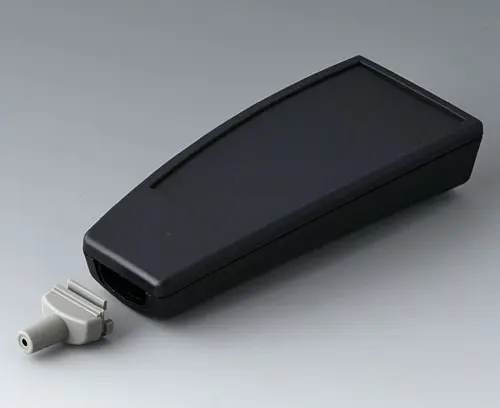

A9067149 SMART-CASE L, Vers. V

A9067149

SMART-CASE L, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9067149

SMART-CASE L, Vers. V
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067219 SMART-CASE L, Vers. II

A9067219

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Without battery compartment

Supply Case-top and base, assembly kit

Chiudi

A9067219

SMART-CASE L, Vers. II
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40

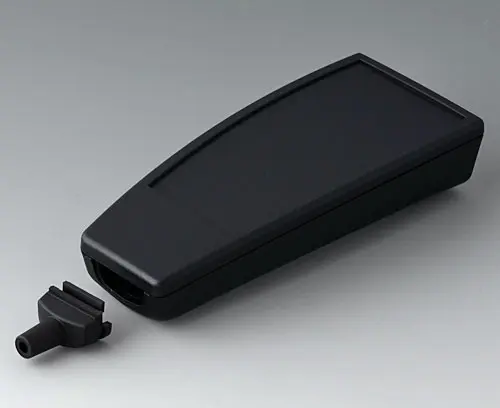

A9067329 SMART-CASE L, Vers. III

A9067329

SMART-CASE L, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9067329

SMART-CASE L, Vers. III
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067339 SMART-CASE L, Vers. IV

A9067339

SMART-CASE L, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9067339

SMART-CASE L, Vers. IV
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
A9067349 SMART-CASE L, Vers. V

A9067349

SMART-CASE L, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9067349

SMART-CASE L, Vers. V
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
140x62,7x30,5mm
IP 65 opt., IP 40
  • Dati tecnici
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
2 g
Customs tariff number
(OKW product)
40169300
Country of manufacture
Germany
