A9153017 Intermediate ring XL

A9153017

Intermediate ring XL

For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply

1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

  • Usato per
  • Modifiche specifiche del cliente
A9053107 SOFT-CASE XL

A9053107

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9053107

SOFT-CASE XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
92x150x28mm
IP 40
A9053108 SOFT-CASE XL

A9053108

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9053108

SOFT-CASE XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
92x150x28mm
IP 40
A9053117 SOFT-CASE XL

A9053117

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9053117

SOFT-CASE XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
92x150x28mm
IP 40
A9053118 SOFT-CASE XL

A9053118

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9053118

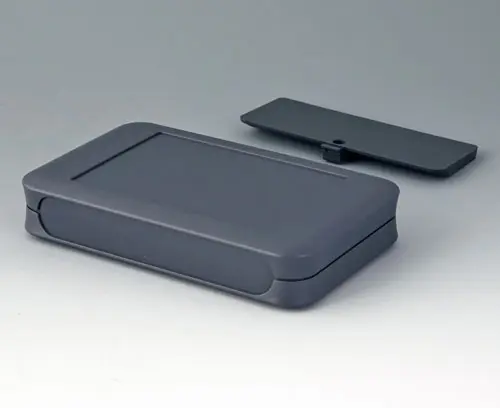

SOFT-CASE XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
92x150x28mm
IP 40
A9053209 SOFT-CASE XL

A9053209

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9053209

SOFT-CASE XL
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
92x150x28mm
IP 40
A9053219 SOFT-CASE XL

A9053219

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9053219

SOFT-CASE XL
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
92x150x28mm
IP 40

Customising options for A9153017

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Length
96 mm
Width
154 mm
Height
26 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.028 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
37 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
