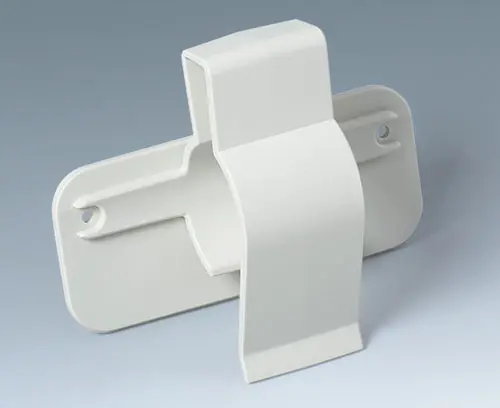

B4308237 Holding clamps

B4308237

Holding clamps

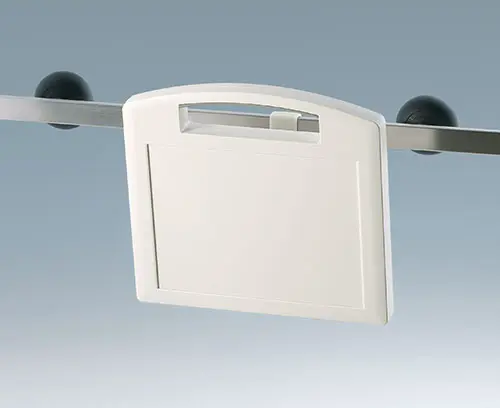

For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply

1 holding clamp, assembly kit

  • Usato per
  • Modifiche specifiche del cliente
B4208107 CARRYTEC S

B4208107

CARRYTEC S Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Chiudi

B4208107

CARRYTEC S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
222x205x80mm
IP 54 opt.
B4210107 CARRYTEC M

B4210107

CARRYTEC M Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Chiudi

B4210107

CARRYTEC M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
270x247x91mm
IP 54 opt.
B4210127 CARRYTEC M slim version

B4210127

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

Chiudi

B4210127

CARRYTEC M slim version
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
270x247x42mm
IP 54 opt.
B4213107 CARRYTEC L

B4213107

CARRYTEC L Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Chiudi

B4213107

CARRYTEC L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
348x303x117mm
IP 54 opt.

Customising options for B4308237

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Purchasing Data
Materiale
Colore
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
50 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
