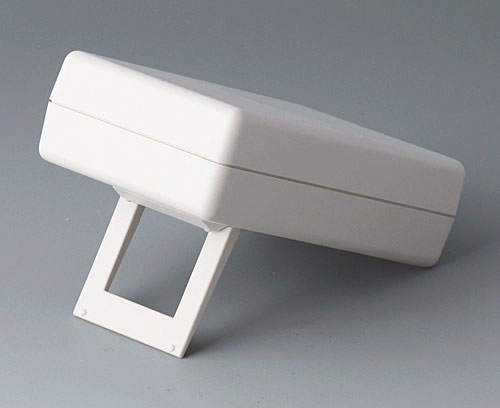

A9250817 Tilt foot bar

A9250817

Tilt foot bar

Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply

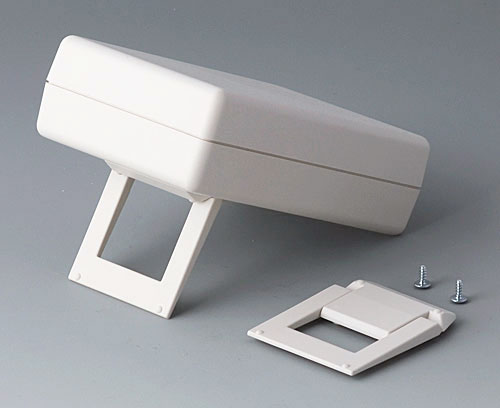

1 tilt foot bar, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A9010065 FLAT-PACK CASES 100 N, Vers. I

A9010065

FLAT-PACK CASES 100 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Chiudi

A9010065

FLAT-PACK CASES 100 N, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
100x50x25mm
IP 40
A9011065 FLAT-PACK CASES 100 H, Vers. I

A9011065

FLAT-PACK CASES 100 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Chiudi

A9011065

FLAT-PACK CASES 100 H, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
100x50x40mm
IP 40
A9020065 FLAT-PACK CASES 120 N, Vers. I

A9020065

FLAT-PACK CASES 120 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Chiudi

A9020065

FLAT-PACK CASES 120 N, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm
IP 40
A9020265 FLAT-PACK CASE 120 S

A9020265

FLAT-PACK CASE 120 S Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Chiudi

A9020265

FLAT-PACK CASE 120 S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm
A9021065 FLAT-PACK CASE 120 H, Vers. I

A9021065

FLAT-PACK CASE 120 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Chiudi

A9021065

FLAT-PACK CASE 120 H, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x65mm
IP 40
A9030065 FLAT-PACK CASES 150 N, Vers. I

A9030065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Chiudi

A9030065

FLAT-PACK CASES 150 N, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
150x80x50mm
IP 40
A9031065 FLAT-PACK CASE 150 H, Vers. I

A9031065

FLAT-PACK CASE 150 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version without handle bar.

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Chiudi

A9031065

FLAT-PACK CASE 150 H, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
150x80x80mm
IP 40
A9032065 FLAT-PACK CASES 150 N, Vers. I

A9032065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Chiudi

A9032065

FLAT-PACK CASES 150 N, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
150x80x55mm
IP 40
A9060007 HAND-HELD-BOX P, Vers. I

A9060007

HAND-HELD-BOX P, Vers. I Design: Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9060007

HAND-HELD-BOX P, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
145x80x36,5mm
A9060017 HAND-HELD-BOX P, Vers. II

A9060017

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9060017

HAND-HELD-BOX P, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
145x80x36,5mm
A9062017 HAND-HELD-BOX M, Vers. I

A9062017

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C) with contacts for soldering

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9062017

HAND-HELD-BOX M, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
145x80x38,5mm
A9406331 SHELL-TYPE CASES G 110, Vers. I

A9406331

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406331

SHELL-TYPE CASES G 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x33mm
IP 65 opt.
A9406333 SHELL-TYPE CASES V 110, Vers. I

A9406333

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406333

SHELL-TYPE CASES V 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x33mm
A9406341 SHELL-TYPE CASES G 110, Vers. I

A9406341

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406341

SHELL-TYPE CASES G 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x45mm
IP 65 opt.
A9406343 SHELL-TYPE CASES V 110, Vers. I

A9406343

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406343

SHELL-TYPE CASES V 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x45mm
A9406351 SHELL-TYPE CASES G 110, Vers. I

A9406351

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406351

SHELL-TYPE CASES G 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x33,5mm
IP 65 opt.
A9406441 SHELL-TYPE CASES G 110, Vers. I

A9406441

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406441

SHELL-TYPE CASES G 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x57mm
IP 65 opt.
A9406443 SHELL-TYPE CASES V 110, Vers. I

A9406443

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406443

SHELL-TYPE CASES V 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x57mm
A9408331 SHELL-TYPE CASES G 155, Vers. I

A9408331

SHELL-TYPE CASES G 155, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9408331

SHELL-TYPE CASES G 155, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm
IP 65 opt.
A9408333 SHELL-TYPE CASES V 155, Vers. I

A9408333

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9408333

SHELL-TYPE CASES V 155, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm
A9408341 SHELL-TYPE CASES G 155, Vers. I

A9408341

SHELL-TYPE CASES G 155, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9408341

SHELL-TYPE CASES G 155, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm
IP 65 opt.
A9408343 SHELL-TYPE CASES V 155, Vers. I

A9408343

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9408343

SHELL-TYPE CASES V 155, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm
A9408351 SHELL-TYPE CASES G 155, Vers. I

A9408351

SHELL-TYPE CASES G 155, Vers. I Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9408351

SHELL-TYPE CASES G 155, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
95x158x33,5mm
IP 65 opt.
A9408441 SHELL-TYPE CASES G 155, Vers. I

A9408441

SHELL-TYPE CASES G 155, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9408441

SHELL-TYPE CASES G 155, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
95x158x57mm
IP 65 opt.
A9408443 SHELL-TYPE CASES V 155, Vers. I

A9408443

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9408443

SHELL-TYPE CASES V 155, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
95x158x57mm
A9520165 FLAT-PACK CASE 120 A

A9520165

FLAT-PACK CASE 120 A Two-piece case. The front pane,l see accessory A9195201, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Chiudi

A9520165

FLAT-PACK CASE 120 A
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm
IP 40
A9530165 FLAT-PACK CASE 150 A

A9530165

FLAT-PACK CASE 150 A Two-piece case. The front panel, see accessory A9195301, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Chiudi

A9530165

FLAT-PACK CASE 150 A
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
150x85x45mm
IP 40

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9207150

Anti-slide feet 6.5 x 2 mm
Prodotto aggiunto alla lista
transparent

Customising options for A9250817

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Purchasing Data
Colore
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
