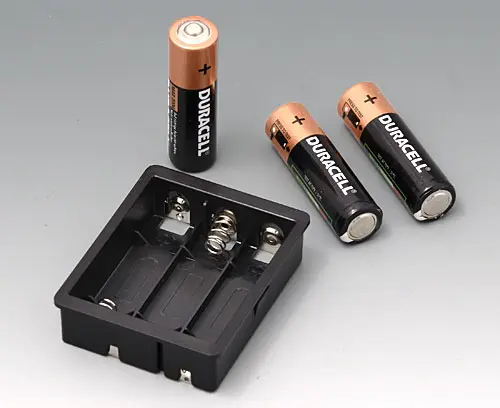

EZ040609 Battery compartment, 3 x AA

EZ040609

Battery compartment, 3 x AA

For 3 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.

Supply

1 battery compartment, set of battery clips

  • Usato per
  • Modifiche specifiche del cliente
EE163059 SYNERGY E160

EE163059

SYNERGY E160 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EE163059

SYNERGY E160
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
160x80x40mm
IP 40
EE166059 SYNERGY E160

EE166059

SYNERGY E160 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EE166059

SYNERGY E160
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
160x80x70mm
IP 40
EE169059 SYNERGY E160

EE169059

SYNERGY E160 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EE169059

SYNERGY E160
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
160x80x100mm
IP 40
EO163059 SYNERGY O160

EO163059

SYNERGY O160 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EO163059

SYNERGY O160
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
160x80x40mm
IP 40
EO166059 SYNERGY O160

EO166059

SYNERGY O160 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EO166059

SYNERGY O160
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
160x80x70mm
IP 40
EO169059 SYNERGY O160

EO169059

SYNERGY O160 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EO169059

SYNERGY O160
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
160x80x100mm
IP 40
ER123059 SYNERGY R120

ER123059

SYNERGY R120 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ER123059

SYNERGY R120
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
⌀120x40mm
IP 40
ER126059 SYNERGY R120

ER126059

SYNERGY R120 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ER126059

SYNERGY R120
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
⌀120x70mm
IP 40
ER129059 SYNERGY R120

ER129059

SYNERGY R120 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ER129059

SYNERGY R120
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
⌀120x100mm
IP 40

Customising options for EZ040609

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Purchasing Data
Materiale
ASA+PC (UL 94 V-0)
Plastic parts
Colore
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
17 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
