B4056237 UNITEC M, 0.6/1.4

B4056237

UNITEC M, 0.6/1.4

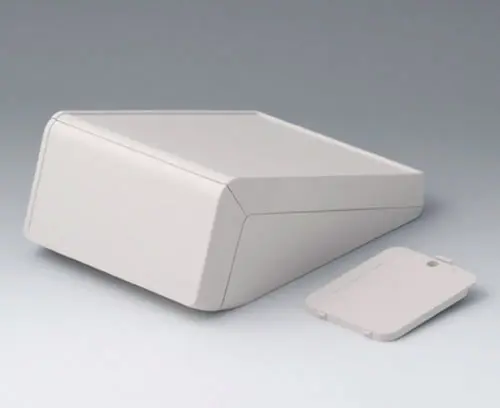

Plastic enclosure with two operating panels at right angeles to each other, optionally for single or dual use. Front part recessed 0.6 mm. Top part recessed 1.4 mm. Fastening pillars for mounting of PCBs in top, base and front part.

Version

With battery compartment 3 x AA

Supply

1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "wall/holder"

B4156307 Wall suspension element M

B4156307

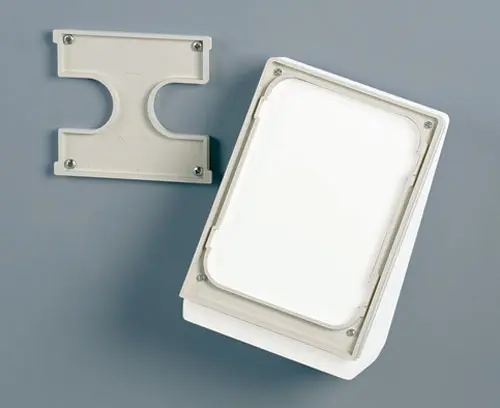

Wall suspension element M Covered wall-fixing. Having a functional and an optically elegant design, the wall-suspension kit offers a sophisticated appearance. Two part construction. The adapter will be fixed to the case and then locked onto the wall-holder.

Supply 1 wall suspension element, 1 adapter with assembly kit

Chiudi

B4156307

Wall suspension element M
Prodotto aggiunto alla lista
off-white RAL 9002

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

A9212330 Anti-slide feet 12 x 3.5 mm

A9212330

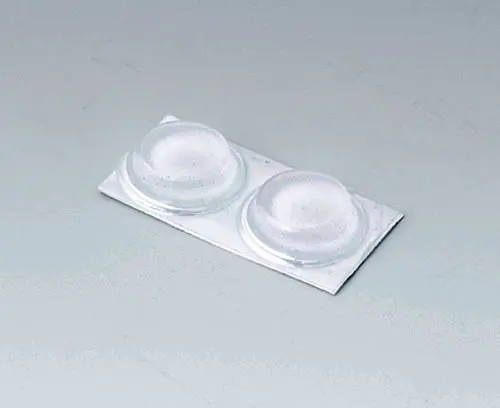

Anti-slide feet 12 x 3.5 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9212330

Anti-slide feet 12 x 3.5 mm
Prodotto aggiunto alla lista
transparent

Customising options for B4056237

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
Colore
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
148 mm
Depth
210 mm
Height
80 mm
PCB length, base
166 mm
PCB width, base
132 mm
PCB length, top
180 mm
PCB width, top
132 mm
Keypad length
178,6 mm
Keypad width
127,6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 5.797 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
257 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
