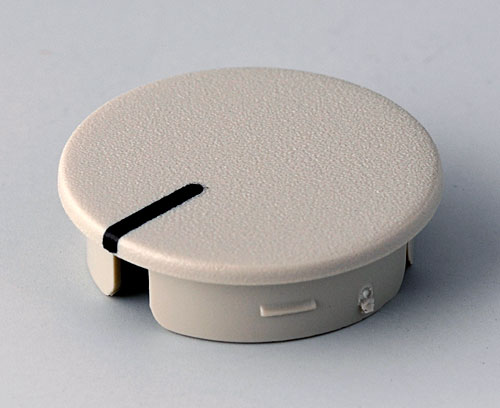

A4123107 Cover 23, with line
Przewiń

A4123107

Cover 23, with line

Suitable for round knobs 23. Cover simply to pin up. Black marking.

Supply

1 cover

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A4123107

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

System components to complete

A2523040 ROUND KNOB 23, without line

A2523040

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,0 Nm, function = 0.8 Nm.

Supply 1 round knob

Zamknij

A2523040

ROUND KNOB 23, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
23x15mm
Otwór 4mm
A2523060 ROUND KNOB 23, without line

A2523060

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Zamknij

A2523060

ROUND KNOB 23, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
23x15mm
Otwór 6mm
A2523068 ROUND KNOB 23, without line

A2523068

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Zamknij

A2523068

ROUND KNOB 23, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
dusty grey RAL 7037
23x15mm
Otwór 6mm
A2523630 ROUND KNOB 23, without line

A2523630

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Zamknij

A2523630

ROUND KNOB 23, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
23x15mm
Otwór 1/4″
A2523638 ROUND KNOB 23, without line

A2523638

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Zamknij

A2523638

ROUND KNOB 23, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
dusty grey RAL 7037
23x15mm
Otwór 1/4″
A2623040 ROUND KNOB 23, with line

A2623040

ROUND KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking. Max. torque: assembly = 1,0 Nm, function = 0.8 Nm.

Supply 1 round knob

Zamknij

A2623040

ROUND KNOB 23, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
23x15mm
Otwór 4mm
A2623060 ROUND KNOB 23, with line

A2623060

ROUND KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Zamknij

A2623060

ROUND KNOB 23, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
23x15mm
Otwór 6mm
A2623068 ROUND KNOB 23, with line

A2623068

ROUND KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Black marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Zamknij

A2623068

ROUND KNOB 23, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
dusty grey RAL 7037
23x15mm
Otwór 6mm

Opcje dostosowywania dla A4123107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
pebble grey RAL 7032
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0,5 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
