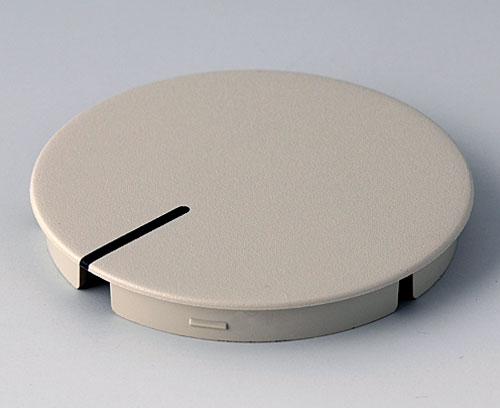

A4150107 Cover 50, with line
Przewiń

A4150107

Cover 50, with line

Suitable for round knobs 50. Cover simply to pin up. Black marking.

Supply

1 cover

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A4150107

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

System components to complete

A2550060 ROUND KNOB 50, without line

A2550060

ROUND KNOB 50, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.

Supply 1 round knob

Zamknij

A2550060

ROUND KNOB 50, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
50x15mm
Otwór 6mm
A2550068 ROUND KNOB 50, without line

A2550068

ROUND KNOB 50, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.

Supply 1 round knob

Zamknij

A2550068

ROUND KNOB 50, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
dusty grey RAL 7037
50x15mm
Otwór 6mm
A2650060 ROUND KNOB 50, with line

A2650060

ROUND KNOB 50, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.

Supply 1 round knob

Zamknij

A2650060

ROUND KNOB 50, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
50x15mm
Otwór 6mm

Opcje dostosowywania dla A4150107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
pebble grey RAL 7032
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2,6 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
