A4231002 Arrow disk 31
Przewiń

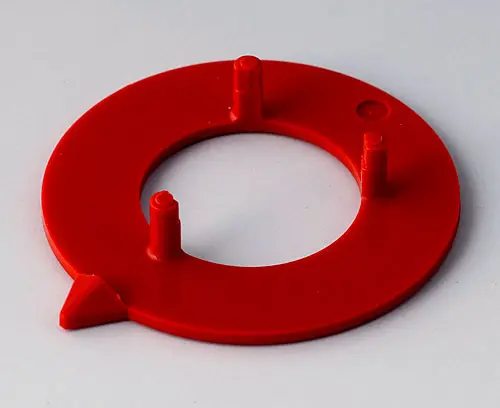

A4231002

Arrow disk 31

Suitable for round knob 31. Arrow disk simply to pin up.

Supply

1 arrow disk

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A4231002

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania
A2531060 ROUND KNOB 31, without line

A2531060

ROUND KNOB 31, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Zamknij

A2531060

ROUND KNOB 31, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
31x15mm
Otwór 6mm
A2531068 ROUND KNOB 31, without line

A2531068

ROUND KNOB 31, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Zamknij

A2531068

ROUND KNOB 31, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
dusty grey RAL 7037
31x15mm
Otwór 6mm
A2531630 ROUND KNOB 31, without line

A2531630

ROUND KNOB 31, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Zamknij

A2531630

ROUND KNOB 31, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
31x15mm
Otwór 1/4″
A2631060 ROUND KNOB 31, with line

A2631060

ROUND KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Zamknij

A2631060

ROUND KNOB 31, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
31x15mm
Otwór 6mm
A2631068 ROUND KNOB 31, with line

A2631068

ROUND KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Black marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Zamknij

A2631068

ROUND KNOB 31, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
dusty grey RAL 7037
31x15mm
Otwór 6mm

Opcje dostosowywania dla A4231002

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
red RAL F12/0-10
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0,76 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
