A5040100 Cover 40, with line
Przewiń

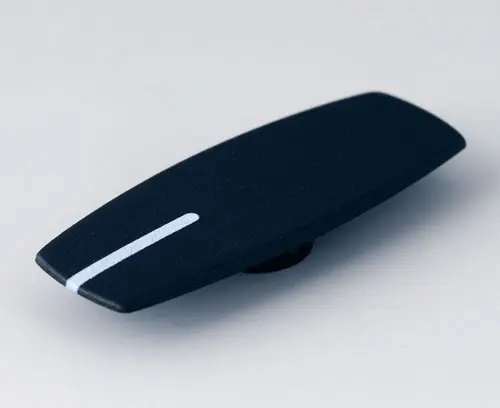

A5040100

Cover 40, with line

Suitable for spindle-shaped knob 40. Cover simply to pin up. White marking.

Supply

1 cover

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A5040100

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

System components to complete

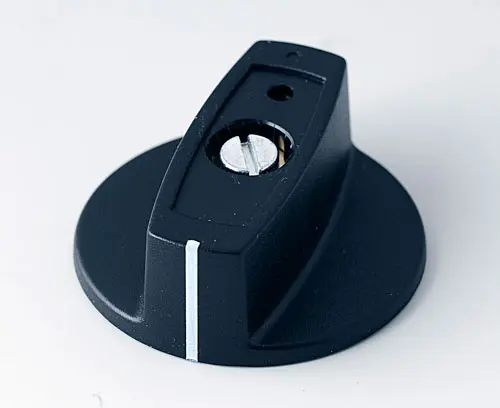

A2440060 SPINDLE-SHAPED KNOB 40, with line

A2440060

SPINDLE-SHAPED KNOB 40, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 spindle-shaped knob

Zamknij

A2440060

SPINDLE-SHAPED KNOB 40, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
40x16mm
Otwór 6mm

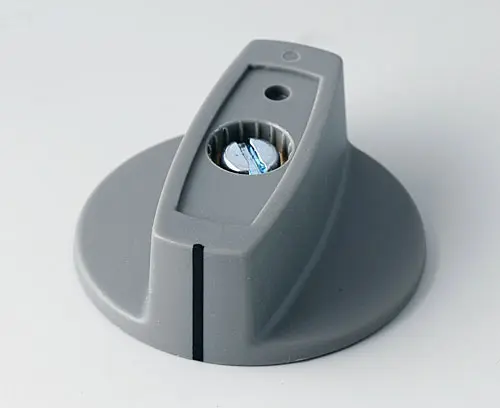

A2440068 SPINDLE-SHAPED KNOB 40, with line

A2440068

SPINDLE-SHAPED KNOB 40, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 spindle-shaped knob

Zamknij

A2440068

SPINDLE-SHAPED KNOB 40, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
dusty grey RAL 7037
40x16mm
Otwór 6mm

Opcje dostosowywania dla A5040100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0,7 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
