B5010109 Bottom and top part R110 H
Przewiń

B5010109

Bottom and top part R110 H

Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version

Bottom part "level"

Supply

1 top and bottom part R110 H, assembly kit

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B5010109

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

System components to complete

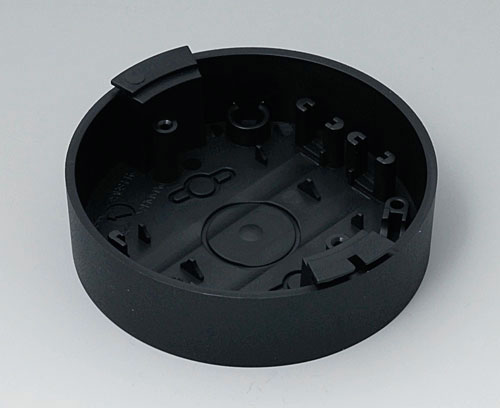

B5011119 Base

B5011119

Base Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.

Supply 1 base

Zamknij

B5011119

Base
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005

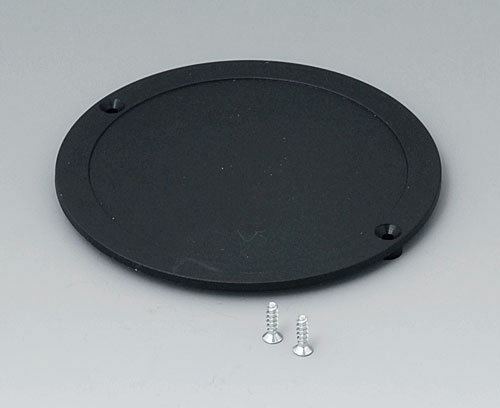

B5011849 Lid

B5011849

Lid Assembly unit: suitable for all bottom parts, screw-down (not suitable for use with battery compartment).

Supply 1 lid, assembly kit

Zamknij

B5011849

Lid
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
B5011859 Battery compartment lid

B5011859

Battery compartment lid Assembly unit: suitable for all bottom parts when using battery compartment 2 x AAA (acc.), screw-down.

Supply 1 battery compartment lid, assembly kit

Zamknij

B5011859

Battery compartment lid
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005

Accessory "battery"

A9166001 Set of battery clips, 2 x AAA

A9166001

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 4 single contacts

Zamknij

A9166001

Set of battery clips, 2 x AAA
produkt został dodany do twojej listy
Steel
tin-plated
A9166002 Battery contact, 2 x AAA

A9166002

Battery contact, 2 x AAA In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.

Supply 1 battery contact

Zamknij

A9166002

Battery contact, 2 x AAA
produkt został dodany do twojej listy
Steel
tin-plated
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Zamknij

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
produkt został dodany do twojej listy
Steel
tin-plated
B5111109 Battery compartment, 2 x AAA

B5111109

Battery compartment, 2 x AAA Application: For 2 x 1.5 V micro cells (AAA).

Supply 1 battery compartment, assembly kit

Zamknij

B5111109

Battery compartment, 2 x AAA
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005

Accessory "protection"

A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Zamknij

A9199005

Strain relief
produkt został dodany do twojej listy
PA 6
volcano
B5111707 Anti-rotation device

B5111707

Anti-rotation device To prevent the base from being removed.

Supply Anti-rotation device, incl. screws

Zamknij

B5111707

Anti-rotation device
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002

Accessory "wall/holder"

B5111309 Wall mounting set

B5111309

Wall mounting set Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).

Supply Wall mounting set, incl. safety screws

Zamknij

B5111309

Wall mounting set
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005

Accessory "screws"

B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.

Supply 4 screws

Zamknij

B5111201

Set of screws
produkt został dodany do twojej listy

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zamknij

A9207150

Anti-slide feet 6.5 x 2 mm
produkt został dodany do twojej listy
transparent

Opcje dostosowywania dla B5010109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
black RAL 9005
Standards
RoHS compliant
REACH compliant
Diameter
⌀ 110 mm
Height
38 mm
PCB diameter, base
⌀ 82 mm
Keypad diameter
⌀ 72 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
45 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
