B4210107 CARRYTEC M
Przewiń

B4210107

CARRYTEC M

Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply

Top and bottom parts, TPE handle pad, assembly kit

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B4210107

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "battery"

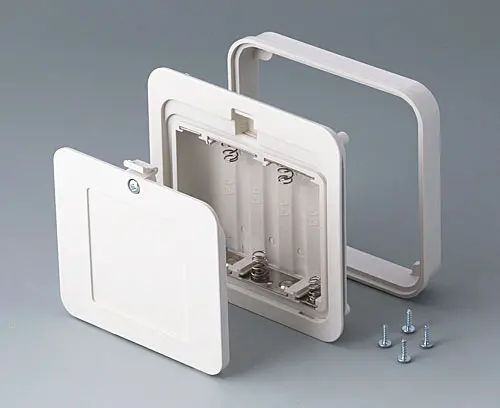

A9338117 Battery compartment kit, 5 x AA

A9338117

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Zamknij

A9338117

Battery compartment kit, 5 x AA
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
93x98mm
IP 54

Accessory "station"

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zamknij

A9178007

Contacts, male
produkt został dodany do twojej listy
gold-plated
B4308117 Station S/M

B4308117

Station S/M For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Zamknij

B4308117

Station S/M
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
B4308127 Base plate for station

B4308127

Base plate for station Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.

Supply 1 base plate, 4 rubber feet, assembly kit

Zamknij

B4308127

Base plate for station
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002

Accessory "protection"

B4310001 Sealing M

B4310001

Sealing M Application: for increasing the protection class, of CARRYTEC M.

Supply 1 sealing

Zamknij

B4310001

Sealing M
produkt został dodany do twojej listy

Accessory "wall/holder"

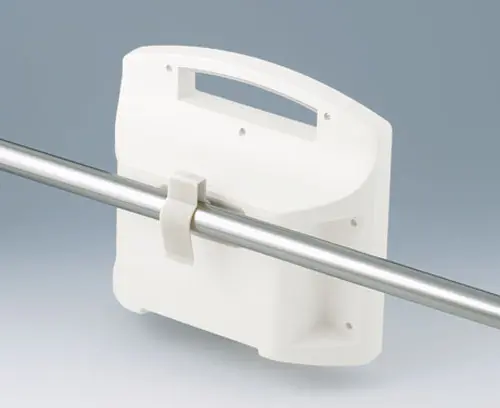

B4308237 Holding clamps

B4308237

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Zamknij

B4308237

Holding clamps
produkt został dodany do twojej listy
PA 6
off-white RAL 9002

Accessory "carrying"

B4308650 Shoulder strap

B4308650

Shoulder strap Practical shoulder strap with shoulder padding.

Supply 1 shoulder strap

Zamknij

B4308650

Shoulder strap
produkt został dodany do twojej listy
grey
1400mm
B4310600 Carrying case M, right-hand side

B4310600

Carrying case M, right-hand side

Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Right-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Zamknij

B4310600

Carrying case M, right-hand side
produkt został dodany do twojej listy
grey
99x214x64mm

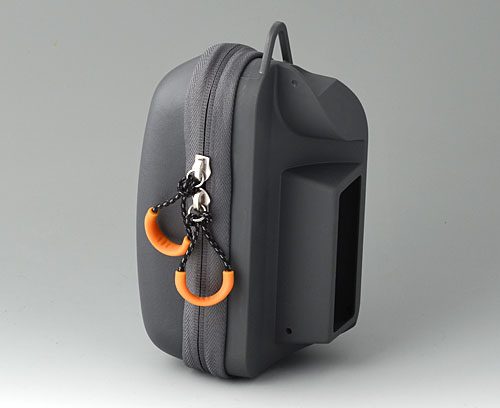

B4310610 Carrying case M, left-hand side

B4310610

Carrying case M, left-hand side

Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Left-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Zamknij

B4310610

Carrying case M, left-hand side
produkt został dodany do twojej listy
grey
99x214x64mm

Accessory "screws"

A0325080 Self-tapping screws 2.5 x 8 mm (PZ1)

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1)
produkt został dodany do twojej listy
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zamknij

A0399T10

Torx T10 screwdriver
produkt został dodany do twojej listy

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zamknij

A9178007

Contacts, male
produkt został dodany do twojej listy
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zamknij

A9178008

Contacts, female
produkt został dodany do twojej listy
gold-plated
A9193042 Mounting plates for contacts

A9193042

Mounting plates for contacts Universal accessories that simplify the assembly of contacts for transferring data and charging current between enclosures and stations. Available as a kit consisting of two plastic mounting plates for holding the 6-pin contacts which are available as accessories ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.

Supply 2 mounting plates

Zamknij

A9193042

Mounting plates for contacts
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
A9193044 Contacting kit, 6-pin

A9193044

Contacting kit, 6-pin Universal accessory consisting of mounting plates and 6-pin contacts. Simplifies the assembly of contacts for transferring data and charging current between enclosures and stations. The "female" and "male" contacts are already permanently glued in the corresponding mounting plate. The contact pins are freely accessible for soldering work.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).

Supply 2 mounting plates, 2 6-pin contacts ("female" and "male")

Zamknij

A9193044

Contacting kit, 6-pin
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005

Opcje dostosowywania dla B4210107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje

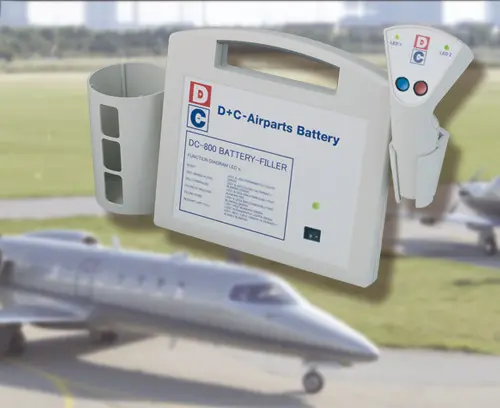

  • Przykłady aplikacji
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Enclosure
SEBS (TPE)
Handle pad
Protection class
IP 54 opt.
Necessary accessories: sealing kit
Kolor
Enclosure off-white RAL 9002,
Handle pad volcano
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
270 mm
Height
247 mm
Depth
91 mm
PCB length, base
258 mm
PCB width, base
176 mm
PCB length, top
259 mm
PCB width, top
184 mm
Keypad length
219,5 mm
Keypad width
162,5 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
646 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
