A3131638 COM-KNOBS 31, without recess
Przewiń

A3131638

COM-KNOBS 31, without recess

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.8 Nm, function = 1.6 Nm.

Supply

1 COM-KNOB (without recess)

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A3131638

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

System components to complete

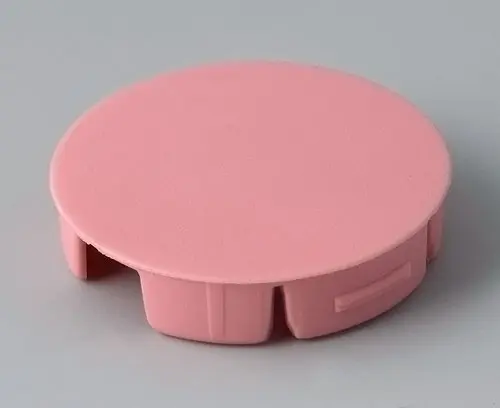

A3231003 Cover 31

A3231003

Cover 31 Suitable for COM-KNOB 31. Cover simply to pin up.

Supply 1 cover

Zamknij

A3231003

Cover 31
produkt został dodany do twojej listy
PA 6
coral

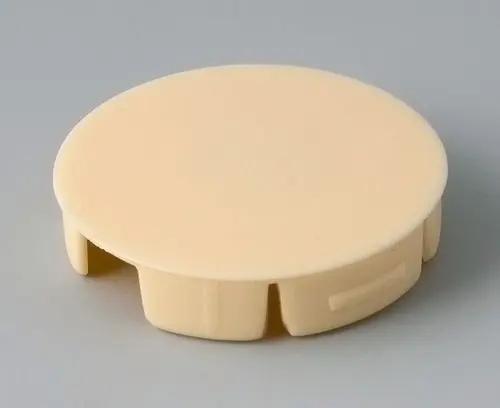

A3231004 Cover 31

A3231004

Cover 31 Suitable for COM-KNOB 31. Cover simply to pin up.

Supply 1 cover

Zamknij

A3231004

Cover 31
produkt został dodany do twojej listy
PA 6
beach

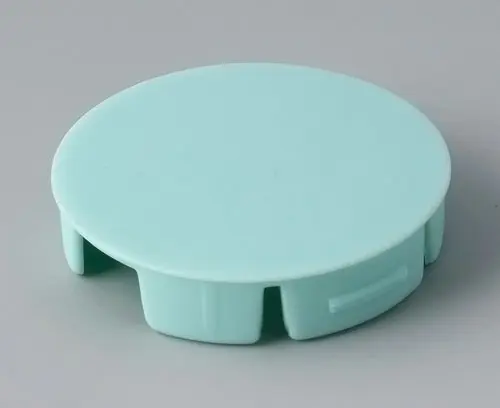

A3231005 Cover 31

A3231005

Cover 31 Suitable for COM-KNOB 31. Cover simply to pin up.

Supply 1 cover

Zamknij

A3231005

Cover 31
produkt został dodany do twojej listy
PA 6
lagoon

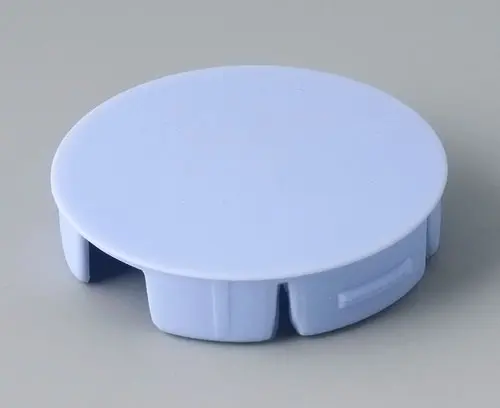

A3231006 Cover 31

A3231006

Cover 31 Suitable for COM-KNOB 31. Cover simply to pin up.

Supply 1 cover

Zamknij

A3231006

Cover 31
produkt został dodany do twojej listy
PA 6
sky

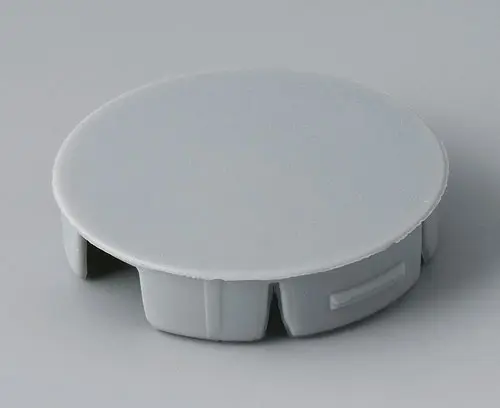

A3231007 Cover 31

A3231007

Cover 31 Suitable for COM-KNOB 31. Cover simply to pin up.

Supply 1 cover

Zamknij

A3231007

Cover 31
produkt został dodany do twojej listy
PA 6
mineral

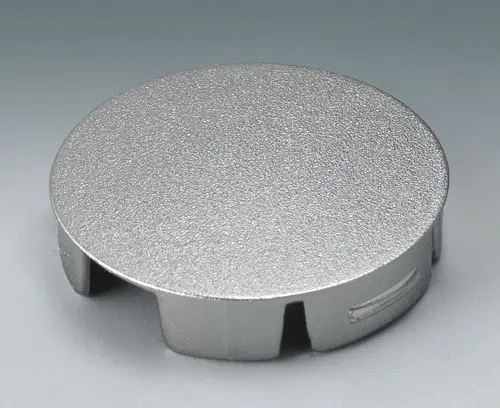

A3231011 Cover 31

A3231011

Cover 31 Cover with a matt chrome finish for a classy metallic look. Suitable for COM-KNOB 31. Cover simply to pin up.

Supply 1 cover

Zamknij

A3231011

Cover 31
produkt został dodany do twojej listy
ABS (UL 94 HB)
matt chromed

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Zamknij

A6207009

Round nut M7 x 0.75
produkt został dodany do twojej listy
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Zamknij

A6210009

Round nut M10 x 0.75
produkt został dodany do twojej listy
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Zamknij

A6295009

Round nut 3/8"-32G
produkt został dodany do twojej listy
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Zamknij

A6300000

Spanner
produkt został dodany do twojej listy

Accessory

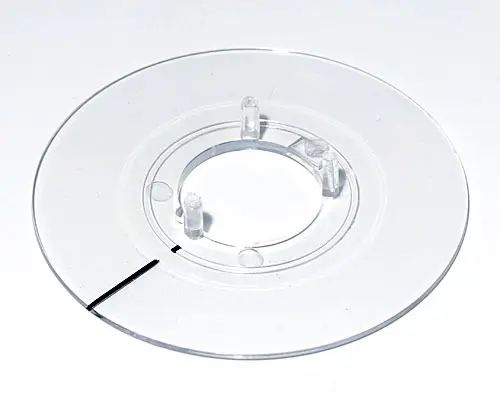

A4431010 Dial 31

A4431010

Dial 31 Dial simply to pin up for round knob 31 / COM-KNOB 31. Surface bright. Black symbol.

Supply 1 dial

Zamknij

A4431010

Dial 31
produkt został dodany do twojej listy
PC (UL 94 HB)
transparent

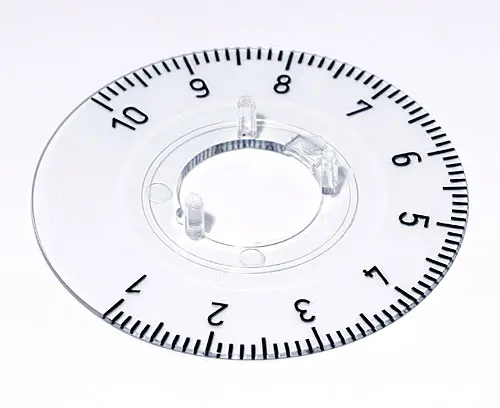

A4431060 Dial 31

A4431060

Dial 31 Dial simply to pin up for round knob 31 / COM-KNOB 31. Surface bright. Black symbol.

Supply 1 dial

Zamknij

A4431060

Dial 31
produkt został dodany do twojej listy
PC (UL 94 HB)
transparent

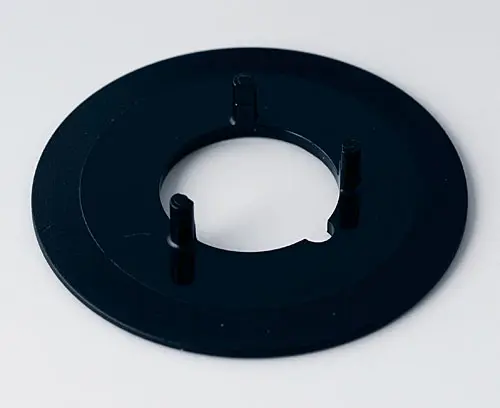

A7331000 Disk 31, without line

A7331000

Disk 31, without line Suitable for round knob 31 / COM-KNOB 31. Disk simply to pin up.

Supply 1 disk

Zamknij

A7331000

Disk 31, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
A7331010 Disk 31, with line

A7331010

Disk 31, with line Suitable for round knob 31 / COM-KNOB 31. Disk simply to pin up. White marking.

Supply 1 disk

Zamknij

A7331010

Disk 31, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005

Opcje dostosowywania dla A3131638

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Przykłady aplikacji
  • Dane zakupowe
Materiał
PA 6
Kolor
volcano
Standards
RoHS compliant
REACH compliant
Diameter
31 mm
Height
16 mm
Bore hole ″
1/4″
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
8 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
