A3316005 Peak 16
Przewiń

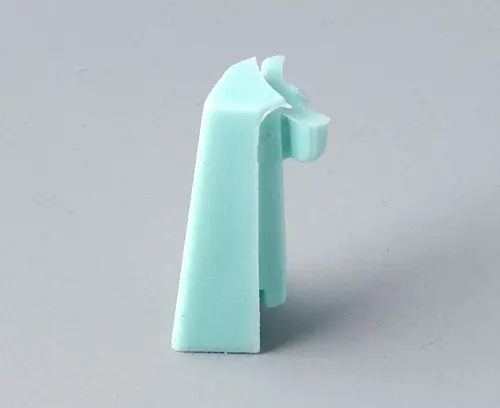

A3316005

Peak 16

Suitable for COM-KNOB 16 with recess. Marking element simply to pin up.

Supply

1 marking element "Peak"

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A3316005

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria

System components to complete

A3016048 COM-KNOBS 16, with recess

A3016048

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 COM-KNOB (with recess)

Zamknij

A3016048

COM-KNOBS 16, with recess
produkt został dodany do twojej listy
PA 6
volcano
16x16mm
Otwór 4mm
A3016049 COM-KNOBS 16, with recess

A3016049

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 COM-KNOB (with recess)

Zamknij

A3016049

COM-KNOBS 16, with recess
produkt został dodany do twojej listy
PA 6
nero
16x16mm
Otwór 4mm
A3016068 COM-KNOBS 16, with recess

A3016068

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (with recess)

Zamknij

A3016068

COM-KNOBS 16, with recess
produkt został dodany do twojej listy
PA 6
volcano
16x16mm
Otwór 6mm
A3016069 COM-KNOBS 16, with recess

A3016069

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (with recess)

Zamknij

A3016069

COM-KNOBS 16, with recess
produkt został dodany do twojej listy
PA 6
nero
16x16mm
Otwór 6mm
A3016638 COM-KNOBS 16, with recess

A3016638

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (with recess)

Zamknij

A3016638

COM-KNOBS 16, with recess
produkt został dodany do twojej listy
PA 6
volcano
16x16mm
Otwór 1/4″
A3016639 COM-KNOBS 16, with recess

A3016639

COM-KNOBS 16, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (with recess)

Zamknij

A3016639

COM-KNOBS 16, with recess
produkt został dodany do twojej listy
PA 6
nero
16x16mm
Otwór 1/4″
  • Informacje techniczne
  • Dane zakupowe
Materiał
PA 6
Kolor
lagoon
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
0,23 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
