A2416040 SPINDLE-SHAPED KNOB 16, with line
Przewiń

A2416040

SPINDLE-SHAPED KNOB 16, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply

1 spindle-shaped knob

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A2416040

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

System components to complete

A5016000 Cover 16, without line

A5016000

Cover 16, without line Suitable for spindle-shaped knob 16. Cover simply to pin up.

Supply 1 cover

Zamknij

A5016000

Cover 16, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005

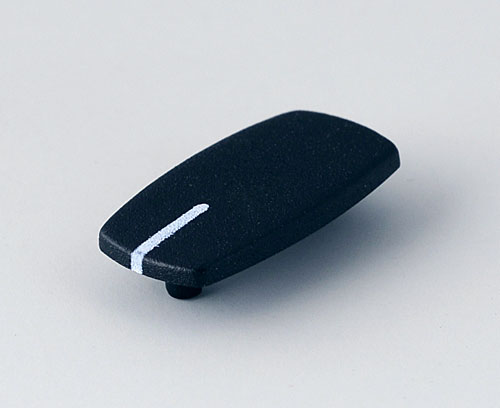

A5016100 Cover 16, with line

A5016100

Cover 16, with line Suitable for spindle-shaped knob 16. Cover simply to pin up. White marking.

Supply 1 cover

Zamknij

A5016100

Cover 16, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
A5016108 Cover 16, with line

A5016108

Cover 16, with line Suitable for spindle-shaped knob 16. Cover simply to pin up. Black marking.

Supply 1 cover

Zamknij

A5016108

Cover 16, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory "screws"

A5116000 Nut cover 16, without line

A5116000

Nut cover 16, without line Suitable for spindle-shaped knob 16. Nut cover simply to pin up.

Supply 1 nut cover

Zamknij

A5116000

Nut cover 16, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Zamknij

A6207009

Round nut M7 x 0.75
produkt został dodany do twojej listy
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Zamknij

A6210009

Round nut M10 x 0.75
produkt został dodany do twojej listy
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Zamknij

A6295009

Round nut 3/8"-32G
produkt został dodany do twojej listy
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Zamknij

A6300000

Spanner
produkt został dodany do twojej listy

Opcje dostosowywania dla A2416040

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
black RAL 9005
Standards
RoHS compliant
REACH compliant
Diameter
16 mm
Height
16 mm
Bore hole
4 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3,7 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
