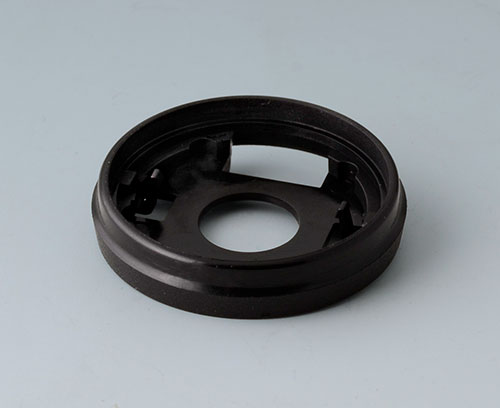

B7536209 Base 36
Przewiń

B7536209

Base 36

Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply

1 base

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B7536209

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria

System components to complete

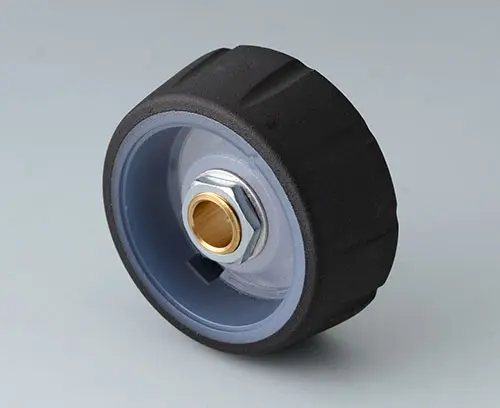

B7136061 CONTROL-KNOBS 36, optional illumination

B7136061

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Zamknij

B7136061

CONTROL-KNOBS 36, optional illumination
produkt został dodany do twojej listy
PC
nero
36x14,7mm
Otwór 6mm

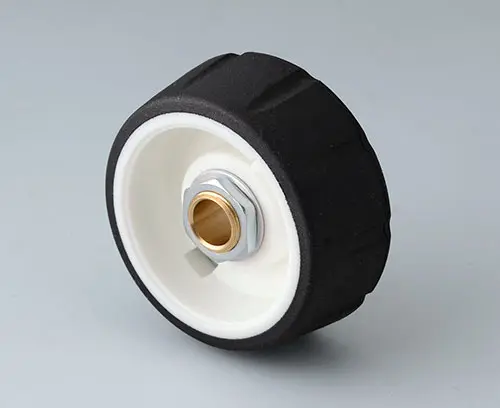

B7136062 CONTROL-KNOBS 36

B7136062

CONTROL-KNOBS 36 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Zamknij

B7136062

CONTROL-KNOBS 36
produkt został dodany do twojej listy
PC
nero
36x14,7mm
Otwór 6mm
B7136063 CONTROL-KNOBS 36, optional illumination

B7136063

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Zamknij

B7136063

CONTROL-KNOBS 36, optional illumination
produkt został dodany do twojej listy
PC
volcano
36x14,7mm
Otwór 6mm

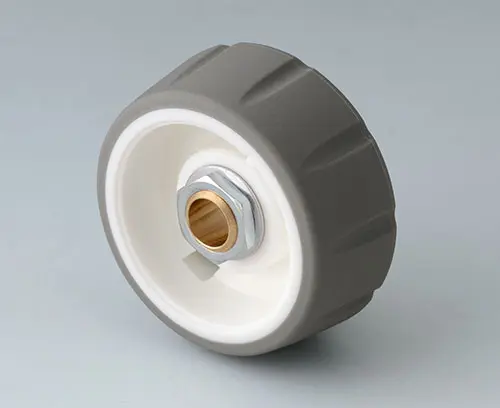

B7136064 CONTROL-KNOBS 36

B7136064

CONTROL-KNOBS 36 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Zamknij

B7136064

CONTROL-KNOBS 36
produkt został dodany do twojej listy
PC
volcano
36x14,7mm
Otwór 6mm
B7136631 CONTROL-KNOBS 36, optional illumination

B7136631

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Zamknij

B7136631

CONTROL-KNOBS 36, optional illumination
produkt został dodany do twojej listy
PC
nero
36x14,7mm
Otwór 1/4″
B7136632 CONTROL-KNOBS 36

B7136632

CONTROL-KNOBS 36 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Zamknij

B7136632

CONTROL-KNOBS 36
produkt został dodany do twojej listy
PC
nero
36x14,7mm
Otwór 1/4″
B7136633 CONTROL-KNOBS 36, optional illumination

B7136633

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Zamknij

B7136633

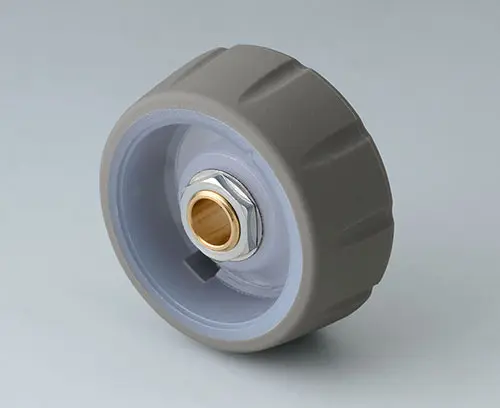

CONTROL-KNOBS 36, optional illumination
produkt został dodany do twojej listy
PC
volcano
36x14,7mm
Otwór 1/4″
B7136634 CONTROL-KNOBS 36

B7136634

CONTROL-KNOBS 36 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Zamknij

B7136634

CONTROL-KNOBS 36
produkt został dodany do twojej listy
PC
volcano
36x14,7mm
Otwór 1/4″
B7236061 CONTROL-KNOBS 36, optional illumination

B7236061

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Zamknij

B7236061

CONTROL-KNOBS 36, optional illumination
produkt został dodany do twojej listy
PC
nero
36x14,7mm
Otwór 6mm
B7236062 CONTROL-KNOBS 36

B7236062

CONTROL-KNOBS 36 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface with pointer line on the side

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Zamknij

B7236062

CONTROL-KNOBS 36
produkt został dodany do twojej listy
PC
nero
36x14,7mm
Otwór 6mm

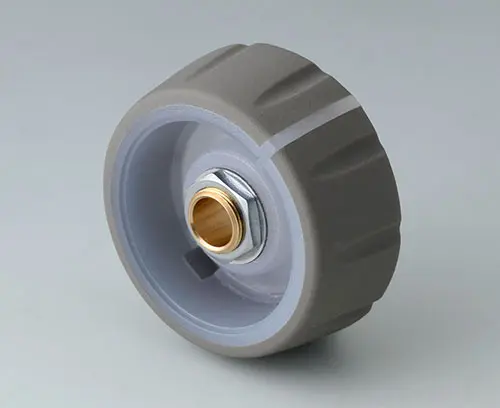

B7236063 CONTROL-KNOBS 36, optional illumination

B7236063

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Zamknij

B7236063

CONTROL-KNOBS 36, optional illumination
produkt został dodany do twojej listy
PC
volcano
36x14,7mm
Otwór 6mm

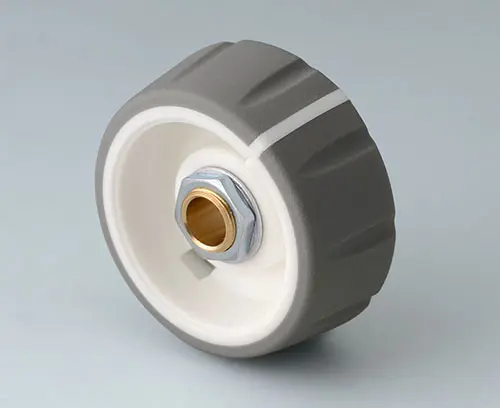

B7236064 CONTROL-KNOBS 36

B7236064

CONTROL-KNOBS 36 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface with pointer line on the side

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Zamknij

B7236064

CONTROL-KNOBS 36
produkt został dodany do twojej listy
PC
volcano
36x14,7mm
Otwór 6mm
B7236631 CONTROL-KNOBS 36, optional illumination

B7236631

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Zamknij

B7236631

CONTROL-KNOBS 36, optional illumination
produkt został dodany do twojej listy
PC
nero
36x14,7mm
Otwór 1/4″

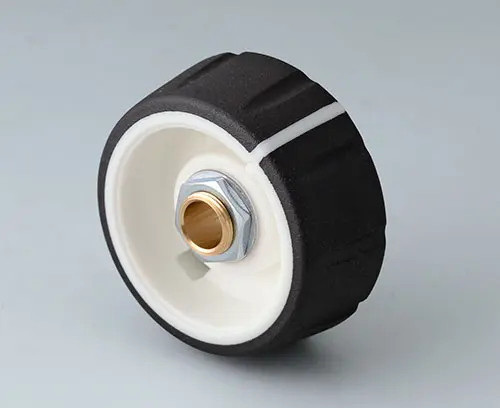

B7236632 CONTROL-KNOBS 36

B7236632

CONTROL-KNOBS 36 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface with pointer line on the side

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Zamknij

B7236632

CONTROL-KNOBS 36
produkt został dodany do twojej listy
PC
nero
36x14,7mm
Otwór 1/4″
B7236633 CONTROL-KNOBS 36, optional illumination

B7236633

CONTROL-KNOBS 36, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Zamknij

B7236633

CONTROL-KNOBS 36, optional illumination
produkt został dodany do twojej listy
PC
volcano
36x14,7mm
Otwór 1/4″
B7236634 CONTROL-KNOBS 36

B7236634

CONTROL-KNOBS 36 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface with pointer line on the side

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Zamknij

B7236634

CONTROL-KNOBS 36
produkt został dodany do twojej listy
PC
volcano
36x14,7mm
Otwór 1/4″

Accessory

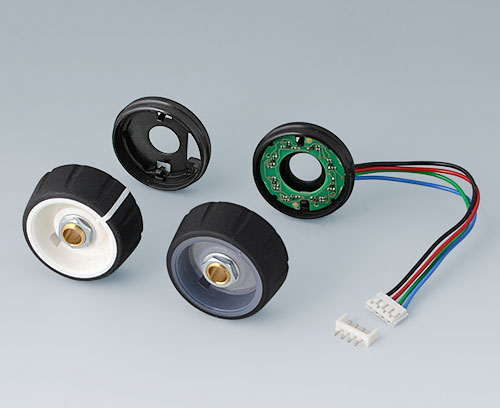

B7546001 LED illumination kit, 8 LEDs (RGB backlight)

B7546001

LED illumination kit, 8 LEDs (RGB backlight)

Board D=27 mm with 8 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

STAR-KNOBS 33 / 41
- flush-fitting version: only in conjunction with the diamond knob
- surface-mounted version: only in conjunction with the diamond assembly kit

CONTROL-KNOBS 36 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

Zamknij

B7546001

LED illumination kit, 8 LEDs (RGB backlight)
produkt został dodany do twojej listy
  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
PA 6
Kolor
nero
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
