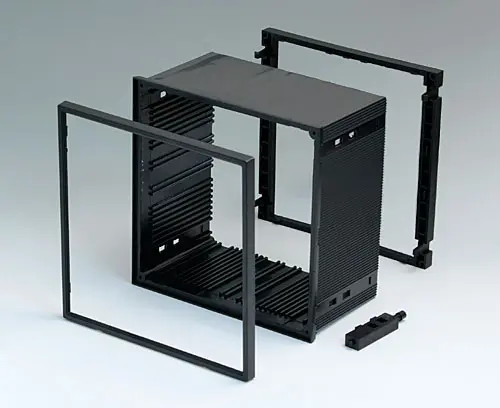

B6045021 DIN-MODULAR CASE TYPE A

B6045021

DIN-MODULAR CASE TYPE A

Case with detachable front frame. The rear frame as well as the rear panel (accessories) will be simply snapped on. The front panel will be screwed at the edges. With guide ridges for slide-in PCB mounting on 4 sides. Corresponding to DIN IEC 61554.

Supply

1 case, 1 front frame, 1 rear frame with snap-lock, fixing elements for switchboard installation

  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory to complete

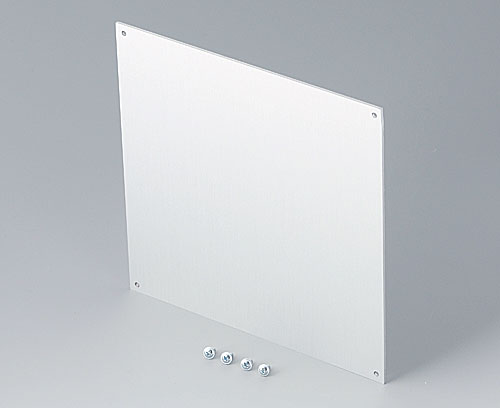

B6145111 Front panel

B6145111

Front panel Front panel for DIN-MODULAR CASE 144 x 144.

Supply 1 front panel, 4 screws

Zamknij

B6145111

Front panel
produkt został dodany do twojej listy
Aluminium
matt anodised
138x138x1,5mm

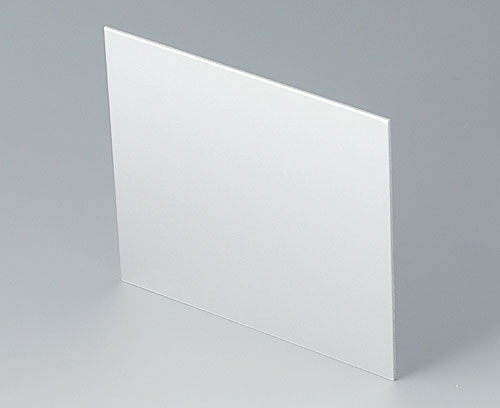

B6145112 Rear panel

B6145112

Rear panel Rear panel for DIN-MODULAR CASE 144 x 144.

Supply 1 rear panel

Zamknij

B6145112

Rear panel
produkt został dodany do twojej listy
Aluminium
matt anodised
131,3x118,6x1,5mm

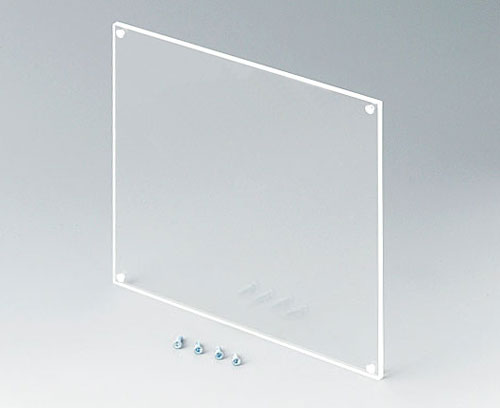

B6145331 Front panel

B6145331

Front panel Front panel for DIN-MODULAR CASE 144 x 144.

Supply 1 front panel, 4 screws

Zamknij

B6145331

Front panel
produkt został dodany do twojej listy
Acrylic glass
transparent
138x138x3mm

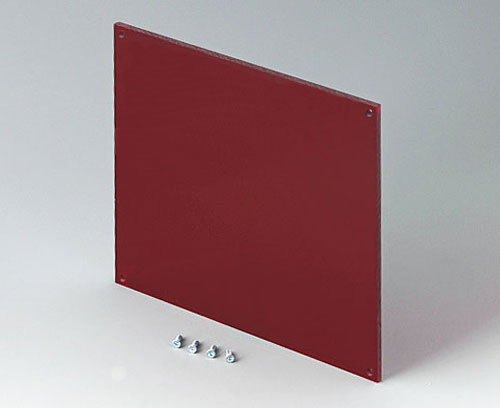

B6145341 Front panel

B6145341

Front panel Front panel for DIN-MODULAR CASE 144 x 144.

Supply 1 front panel, 4 screws

Zamknij

B6145341

Front panel
produkt został dodany do twojej listy
Acrylic glass
red transparent
138x138x3mm

Accessory "protection"

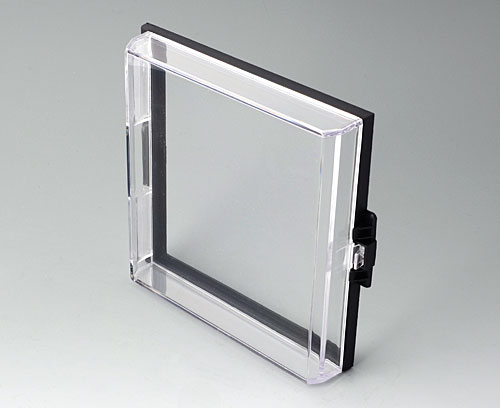

B6145533 Protection cover

B6145533

Protection cover Protection cover for DIN-MODULAR CASE 144 x 144.

Supply 1 protection cover, 1 sealing kit

Zamknij

B6145533

Protection cover
produkt został dodany do twojej listy
PC
transparent

Opcje dostosowywania dla B6045021

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Kolor
black RAL 9005
Standards
Width
144 mm
Height
144 mm
Depth
75 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
196 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy
