B6112341 Front panel
Przewiń

B6112341

Front panel

Front panel for DIN-MODULAR CASE 48 x 48.

Supply

1 front panel

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6112341

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania

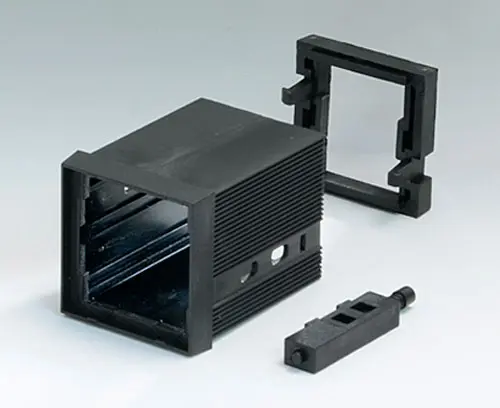

B6012011 DIN-MODULAR CASE TYPE A

B6012011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6012011

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
48x48x57mm

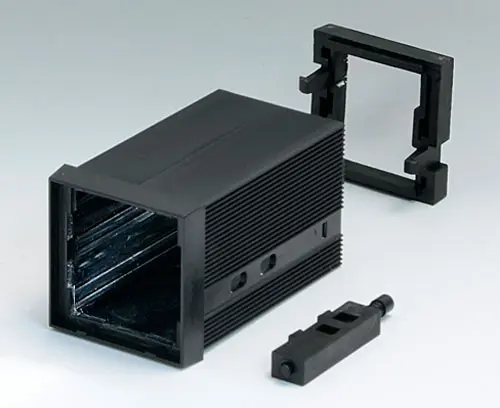

B6012021 DIN-MODULAR CASE TYPE A

B6012021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6012021

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
48x48x75mm

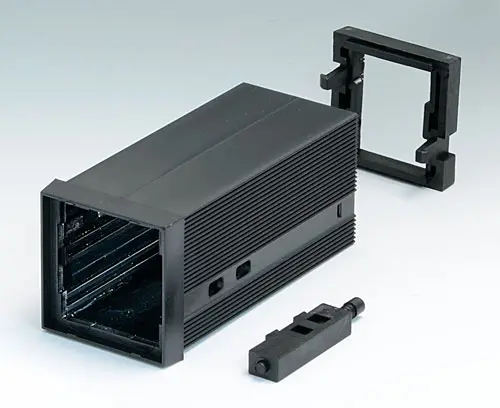

B6012031 DIN-MODULAR CASE TYPE A

B6012031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6012031

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
48x48x100mm
B6012051 DIN-MODULAR CASE TYPE A

B6012051

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6012051

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
48x48x114mm

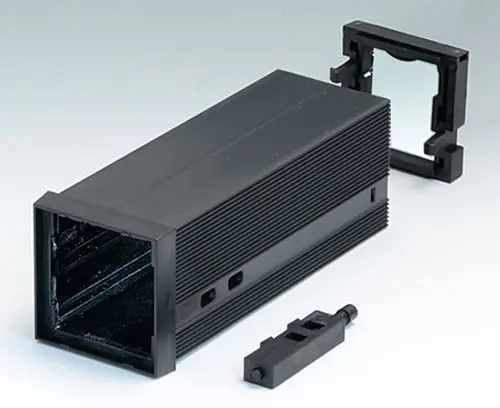

B6012061 DIN-MODULAR CASE TYPE A

B6012061

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6012061

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
48x48x124mm

Opcje dostosowywania dla B6112341

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Dane zakupowe
Materiał
Acrylic glass
Kolor
red transparent
Standards
RoHS compliant
REACH compliant
Width
43,6 mm
Height
43,6 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
4 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
