B6121222 Rear panel
Przewiń

B6121222

Rear panel

Rear panel for DIN-MODULAR CASE 72 x 36.

Supply

1 rear panel

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6121222

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania

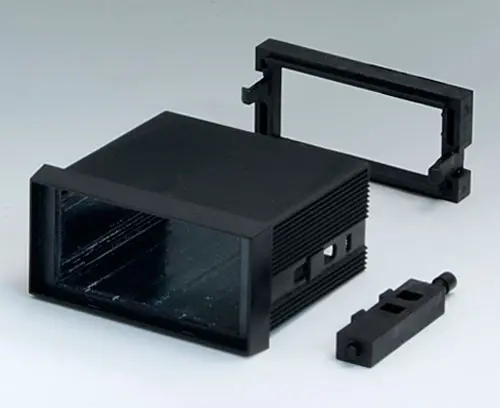

B6021011 DIN-MODULAR CASE TYPE A

B6021011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6021011

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
72x36x57mm

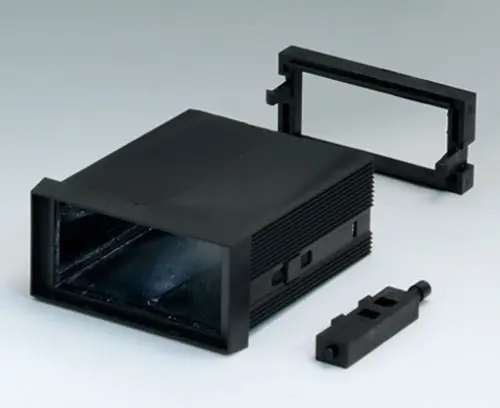

B6021021 DIN-MODULAR CASE TYPE A

B6021021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61 554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6021021

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
72x36x75mm
B6021031 DIN-MODULAR CASE TYPE A

B6021031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6021031

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
72x36x100mm

Opcje dostosowywania dla B6121222

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Dane zakupowe
Materiał
PPO (UL 94 V-0)
Kolor
black RAL 9005
Standards
RoHS compliant
REACH compliant
Width
57,6 mm
Height
28,7 mm
Thickness
1,5 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy
