B6123112 Rear panel
Przewiń

B6123112

Rear panel

Rear panel for DIN-MODULAR CASE 72 x 72.

Supply

1 rear panel

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6123112

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania

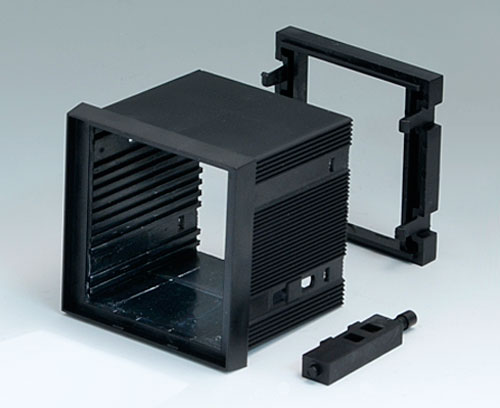

B6023011 DIN-MODULAR CASE TYPE A

B6023011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6023011

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
72x72x57mm
B6023021 DIN-MODULAR CASE TYPE A

B6023021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6023021

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
72x72x75mm
B6023031 DIN-MODULAR CASE TYPE A

B6023031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6023031

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
72x72x100mm
B6023061 DIN-MODULAR CASE TYPE A

B6023061

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6023061

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
72x72x124mm

Opcje dostosowywania dla B6123112

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Dane zakupowe
Materiał
Aluminium
Kolor
matt anodised
Standards
RoHS compliant
REACH compliant
Width
63,7 mm
Height
49,1 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
7 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Italy
