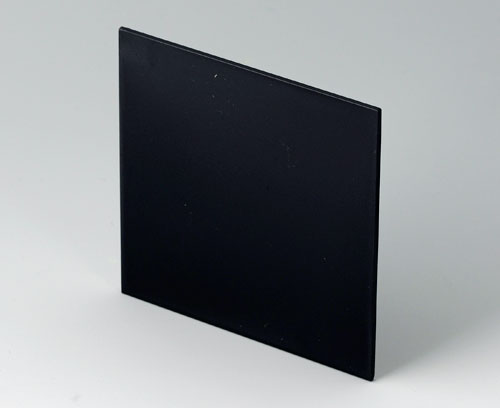

B6134221 Front panel
Przewiń

B6134221

Front panel

Front panel for DIN-MODULAR CASE 96 x 96.

Supply

1 front panel

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6134221

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania
B6034011 DIN-MODULAR CASE TYPE A, Vers. I

B6034011

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 2 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6034011

DIN-MODULAR CASE TYPE A, Vers. I
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
96x96x57mm
B6034021 DIN-MODULAR CASE TYPE A, Vers. I

B6034021

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 2 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6034021

DIN-MODULAR CASE TYPE A, Vers. I
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
96x96x75mm
B6034031 DIN-MODULAR CASE TYPE A, Vers. I

B6034031

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 2 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6034031

DIN-MODULAR CASE TYPE A, Vers. I
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
96x96x100mm
B6034062 DIN-MODULAR CASE TYPE A, Vers. II

B6034062

DIN-MODULAR CASE TYPE A, Vers. II Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 4 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6034062

DIN-MODULAR CASE TYPE A, Vers. II
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
96x96x124mm
B6034102 DIN-MODULAR CASE TYPE A, Vers. II

B6034102

DIN-MODULAR CASE TYPE A, Vers. II Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 4 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6034102

DIN-MODULAR CASE TYPE A, Vers. II
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
96x96x179mm

Opcje dostosowywania dla B6134221

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Dane zakupowe
Materiał
PPO (UL 94 V-0)
Kolor
black RAL 9005
Standards
RoHS compliant
REACH compliant
Width
90,7 mm
Height
90,7 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
21 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy
