B6143341 Front panel
Przewiń

B6143341

Front panel

Front panel for DIN-MODULAR CASE 144 x 72.

Supply

1 front panel

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6143341

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania

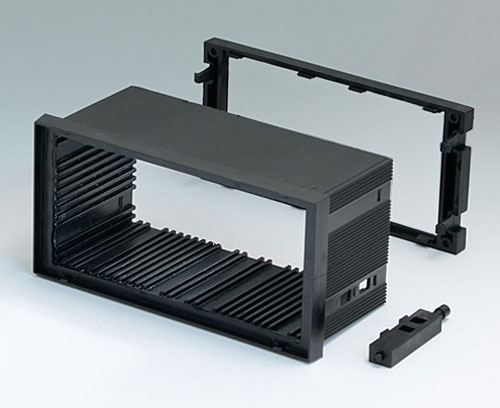

B6043011 DIN-MODULAR CASE TYPE A

B6043011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6043011

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
144x72x57mm

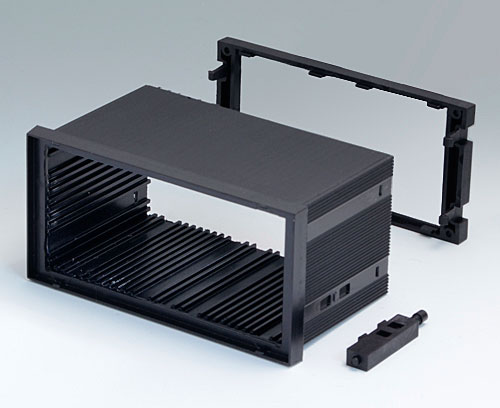

B6043021 DIN-MODULAR CASE TYPE A

B6043021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6043021

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
144x72x75mm

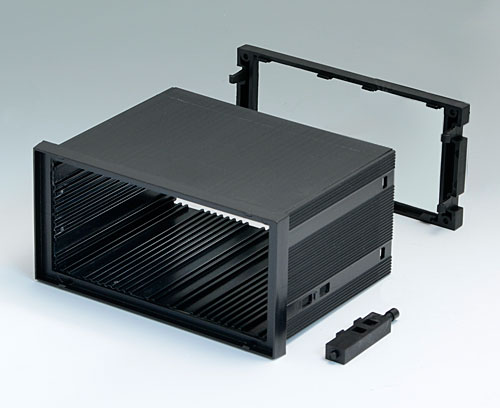

B6043031 DIN-MODULAR CASE TYPE A

B6043031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6043031

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
144x72x100mm
B6043041 DIN-MODULAR CASE TYPE A

B6043041

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6043041

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
144x72x109mm

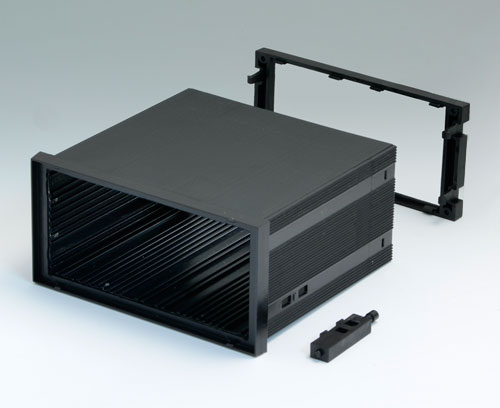

B6043061 DIN-MODULAR CASE TYPE A

B6043061

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6043061

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
144x72x124mm

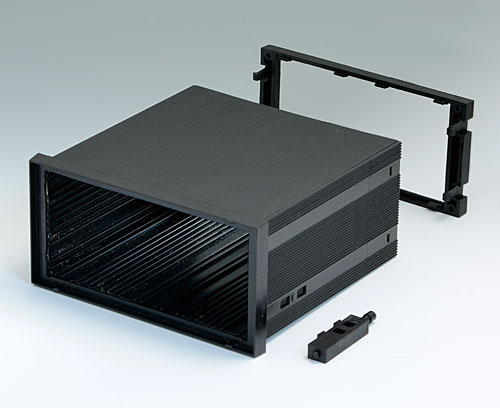

B6043071 DIN-MODULAR CASE TYPE A

B6043071

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6043071

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
144x72x131mm
B6043091 DIN-MODULAR CASE TYPE A

B6043091

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Zamknij

B6043091

DIN-MODULAR CASE TYPE A
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black RAL 9005
144x72x156mm

Opcje dostosowywania dla B6143341

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Dane zakupowe
Materiał
Acrylic glass
Kolor
red transparent
Standards
RoHS compliant
REACH compliant
Width
139,2 mm
Height
67,3 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
22 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
