A9178137 Station, Vers. I
Przewiń

A9178137

Station, Vers. I

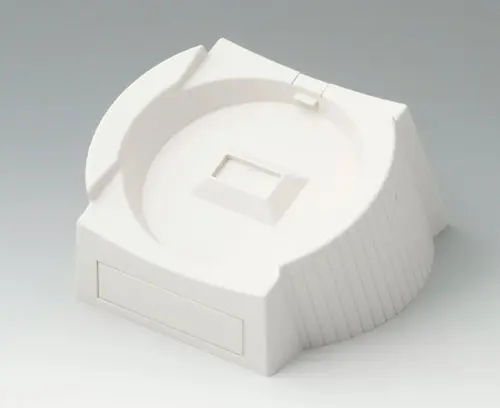

Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version

Desktop version

Supply

1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9178137

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

System components to complete

A9078107 DATEC-CONTROL M, Vers. I

A9078107

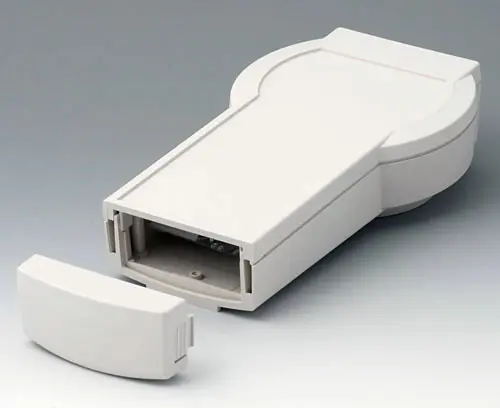

DATEC-CONTROL M, Vers. I Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With closed operating area, recessed: 1.7 mm deep

Supply Top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

Zamknij

A9078107

DATEC-CONTROL M, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
243x130x60mm
IP 54 opt.
A9078207 DATEC-CONTROL M, Vers. II

A9078207

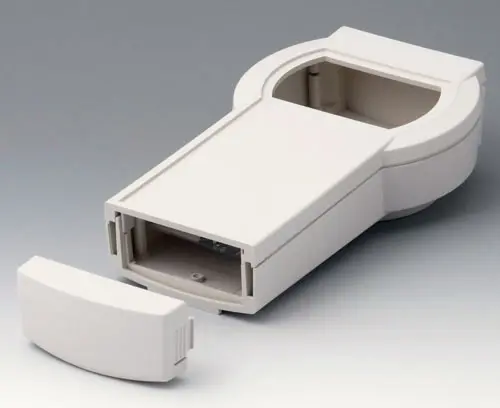

DATEC-CONTROL M, Vers. II Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With maximum sized cutout for digital displays

Supply Top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

Zamknij

A9078207

DATEC-CONTROL M, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
243x130x60mm
IP 54 opt.
A9079107 DATEC-CONTROL L, Vers. I

A9079107

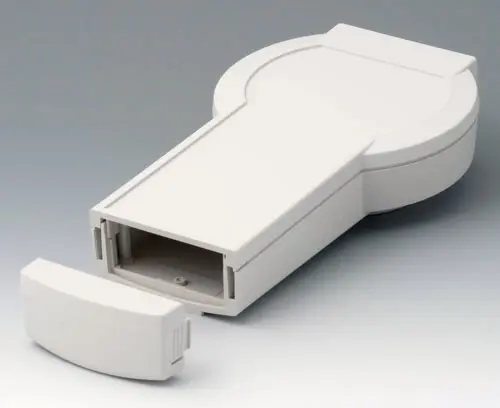

DATEC-CONTROL L, Vers. I Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With closed operating area, recessed: 1.7 mm deep

Supply Top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

Zamknij

A9079107

DATEC-CONTROL L, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
266x144x60mm
IP 54 opt.
A9079207 DATEC-CONTROL L, Vers. II

A9079207

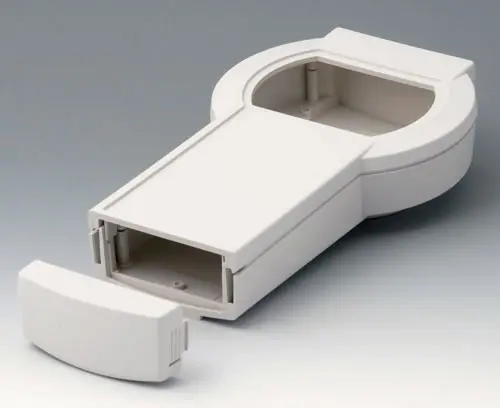

DATEC-CONTROL L, Vers. II Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With maximum sized cutout for digital displays

Supply top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

Zamknij

A9079207

DATEC-CONTROL L, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
266x144x60mm
IP 54 opt.

Accessory "battery"

A9178118 Battery compartment holder

A9178118

Battery compartment holder Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.

Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws

Zamknij

A9178118

Battery compartment holder
produkt został dodany do twojej listy
PC
volcano
A9178128 Battery compartment, M/L, 4 x AA

A9178128

Battery compartment, M/L, 4 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 4 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

Zamknij

A9178128

Battery compartment, M/L, 4 x AA
produkt został dodany do twojej listy
PC
volcano
A9178158 Battery compartment, M/L, 5 x AA

A9178158

Battery compartment, M/L, 5 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 5 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

Zamknij

A9178158

Battery compartment, M/L, 5 x AA
produkt został dodany do twojej listy
PC
volcano

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zamknij

A9178007

Contacts, male
produkt został dodany do twojej listy
gold-plated

Opcje dostosowywania dla A9178137

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
253 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
