A9173009 Display window S, border black
Przewiń

A9173009

Display window S, border black

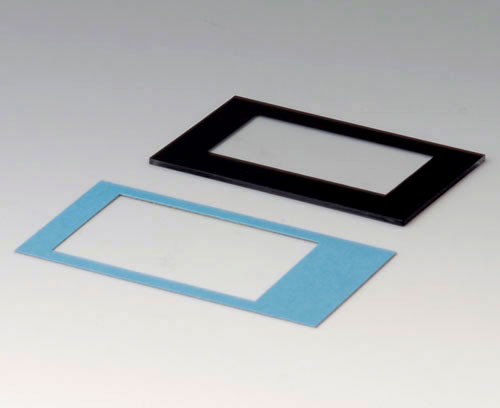

The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply

1 display window, 1 adhesive foil

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9173009

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania
A9073209 DATEC-MOBIL-BOX S, Vers. II

A9073209

DATEC-MOBIL-BOX S, Vers. II Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm

Supply Case-top and base, battery compartment lid, assembly kit

Zamknij

A9073209

DATEC-MOBIL-BOX S, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
152x83x33,5mm
IP 65 opt.
A9073219 DATEC-MOBIL-BOX S, Vers. II

A9073219

DATEC-MOBIL-BOX S, Vers. II Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm

Supply Case-top and base, battery compartment lid, assembly kit

Zamknij

A9073219

DATEC-MOBIL-BOX S, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
152x83x33,5mm
IP 65 opt.

Opcje dostosowywania dla A9173009

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
Acrylic glass
Kolor
transparent
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
6 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
