A9226229 Wall suspension element
Przewiń

A9226229

Wall suspension element

Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply

2 claps, 2 bars, 1 holder

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9226229

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania

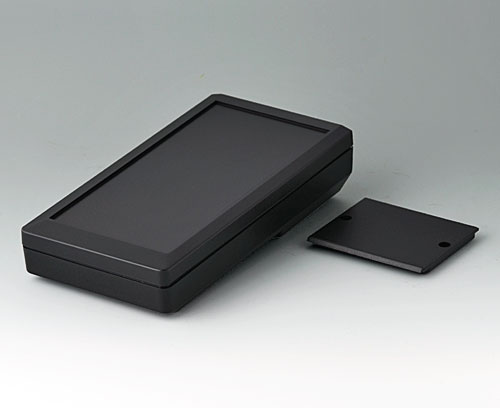

A9074109 DATEC-MOBIL-BOX M, Vers. I

A9074109

DATEC-MOBIL-BOX M, Vers. I Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 1.7 mm

Supply Case-top and base, battery compartment lid, assembly kit

Zamknij

A9074109

DATEC-MOBIL-BOX M, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
195x101x44mm
IP 65 opt.
A9074209 DATEC-MOBIL-BOX M, Vers. II

A9074209

DATEC-MOBIL-BOX M, Vers. II Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for standard-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

Zamknij

A9074209

DATEC-MOBIL-BOX M, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
195x101x44mm
IP 65 opt.
A9074309 DATEC-MOBIL-BOX M, Vers. III

A9074309

DATEC-MOBIL-BOX M, Vers. III Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for compact-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

Zamknij

A9074309

DATEC-MOBIL-BOX M, Vers. III
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
195x101x44mm
IP 65 opt.

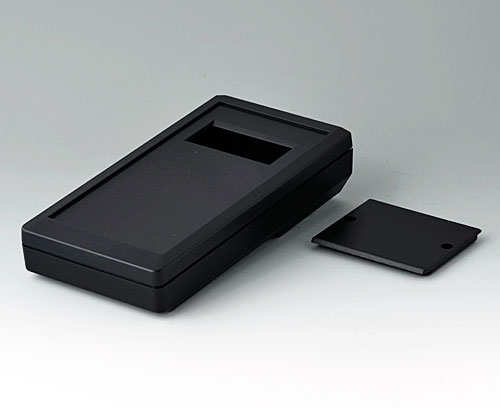

A9074409 DATEC-MOBIL-BOX M, Vers. IV

A9074409

DATEC-MOBIL-BOX M, Vers. IV Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for standard-LCD modules with 4 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

Zamknij

A9074409

DATEC-MOBIL-BOX M, Vers. IV
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
195x101x44mm
IP 65 opt.

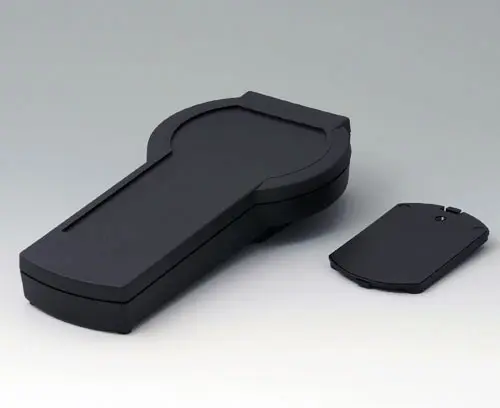

A9077109 DATEC-CONTROL S, Vers. I

A9077109

DATEC-CONTROL S, Vers. I Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version With closed operating area, recess: 1.7 mm deep

Supply Top and base part, battery compartment lid, assembly kit

Zamknij

A9077109

DATEC-CONTROL S, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
228x117x47mm
IP 65 opt.

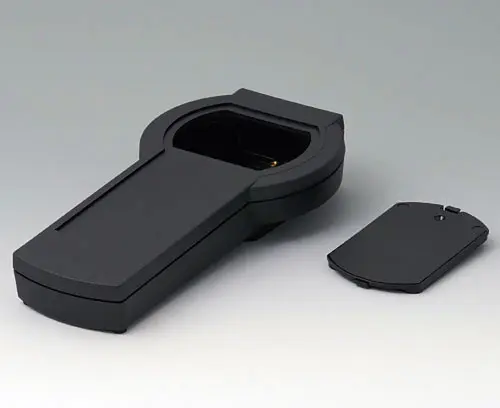

A9077209 DATEC-CONTROL S, Vers. II

A9077209

DATEC-CONTROL S, Vers. II Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

Zamknij

A9077209

DATEC-CONTROL S, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
228x117x47mm
IP 65 opt.

Opcje dostosowywania dla A9226229

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
40 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
