B4116116 Front panel MH
Przewiń

B4116116

Front panel MH

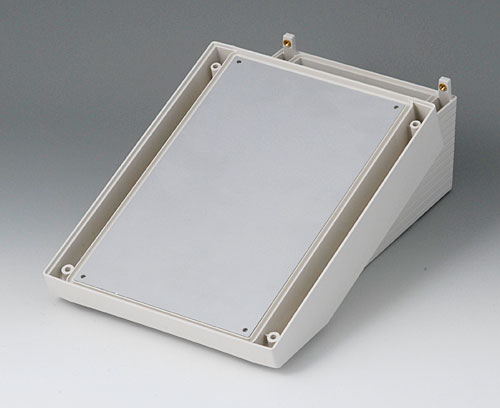

Front panel MH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.

Supply

1 front panel, 4 screws diameter 3 mm

Rysunek 2D w formacie PDF
Widok 3D PDF
