A9095108 DIATEC L
Przewiń

A9095108

DIATEC L

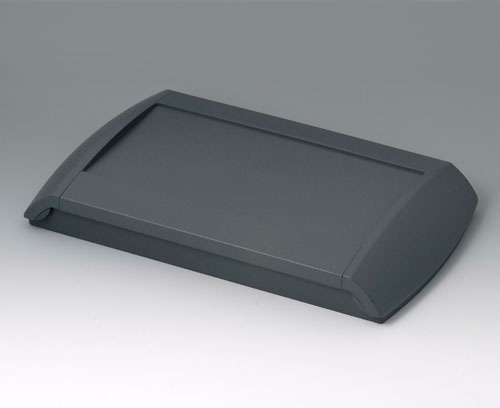

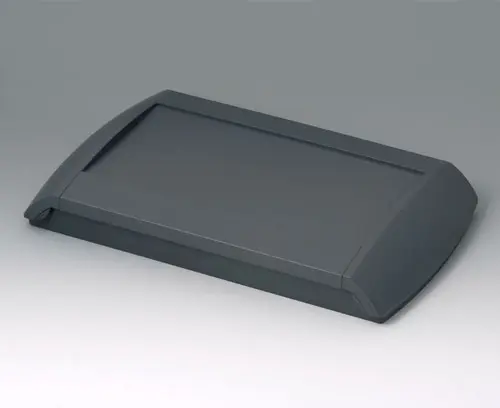

Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated supports for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply

Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9095108

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Zamknij

A9160003

Plug-in contact, 1 x 9 V (PP3)
produkt został dodany do twojej listy
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Zamknij

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
produkt został dodany do twojej listy
Steel
tin-plated

Accessory "protection"

A9193122 Hinged lid S, L

A9193122

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Zamknij

A9193122

Hinged lid S, L
produkt został dodany do twojej listy
PC (UL 94 V-0)
translucent
A9193128 Hinged lid S, L

A9193128

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Zamknij

A9193128

Hinged lid S, L
produkt został dodany do twojej listy
ABS (UL 94 HB)
lava
A9193132 Hinged lid S, L

A9193132

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Zamknij

A9193132

Hinged lid S, L
produkt został dodany do twojej listy
PC (UL 94 V-0)
clear
A9194007 Slot-in panel

A9194007

Slot-in panel The slot-in panel can be used as interior partition or separation, for example to protect the electronics when changing batteries. Integrated guide ridges, max. 2 slot-in panels each case.

Supply 1 slot-in panel

Zamknij

A9194007

Slot-in panel
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
156x30x3mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
produkt został dodany do twojej listy

Accessory

A9212330 Anti-slide feet 12 x 3.5 mm

A9212330

Anti-slide feet 12 x 3.5 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zamknij

A9212330

Anti-slide feet 12 x 3.5 mm
produkt został dodany do twojej listy
transparent

Opcje dostosowywania dla A9095108

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Protection class
IP 40
Kolor
lava
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
330 mm
Height
48 mm
Depth
200 mm
PCB length, base
180 mm
PCB width, base
240 mm
PCB length, top
180 mm
PCB width, top
240 mm
Keypad length
127,6 mm
Keypad width
239,6 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
510 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
