B7010107 ERGO-CASE M, flat
Przewiń

B7010107

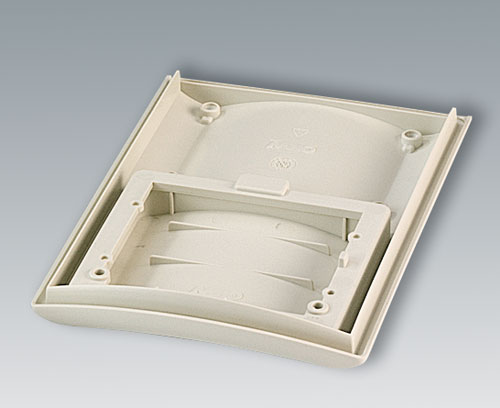

ERGO-CASE M, flat

Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version

With flat top part

Supply

1 top and 1 bottom part, battery compartment lid, assembly kit

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B7010107

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Zamknij

A9160003

Plug-in contact, 1 x 9 V (PP3)
produkt został dodany do twojej listy
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

Zamknij

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
produkt został dodany do twojej listy
Steel
tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

Zamknij

A9174002

Battery compartment, 2 x 9 V
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

Zamknij

A9174003

Battery compartment, 1 x 9 V
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Zamknij

A9174006

Set of battery clips, 1 x 9 V
produkt został dodany do twojej listy
Steel
tin-plated
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Zamknij

A9345217

Set of battery compartment, 4 x AA
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002

Accessory "protection"

B7110001 Sealing kit M

B7110001

Sealing kit M Application: for increasing the protection class, of ERGO-CASE M.

Supply 1 sealing kit

Zamknij

B7110001

Sealing kit M
produkt został dodany do twojej listy

Accessory "wall/holder"

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zamknij

A9178007

Contacts, male
produkt został dodany do twojej listy
gold-plated
B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

Zamknij

B7110028

Fastening elements L / M / S
produkt został dodany do twojej listy
PA 6
volcano
B7110048 Wall suspension elements S / M

B7110048

Wall suspension elements S / M Special wall suspension element for the ERGO-CASE S/M for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).

Supply 2 wall suspension element, 1 securing clip, 1 screw

Zamknij

B7110048

Wall suspension elements S / M
produkt został dodany do twojej listy
PA 6
volcano

Accessory "carrying"

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Zamknij

A9100001

Ring eyelet
produkt został dodany do twojej listy
PA 6
volcano
B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

Zamknij

B7110028

Fastening elements L / M / S
produkt został dodany do twojej listy
PA 6
volcano
B7110107 Belt / pocket clip

B7110107

Belt / pocket clip Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 clip, assembly kit

Zamknij

B7110107

Belt / pocket clip
produkt został dodany do twojej listy
PA 6
off-white RAL 9002
B7110129 Belt strap

B7110129

Belt strap Elastic strap with clamp lock.

Supply 1 belt strap

Zamknij

B7110129

Belt strap
produkt został dodany do twojej listy
black
450x35mm
B7110139 Belt strap

B7110139

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

Zamknij

B7110139

Belt strap
produkt został dodany do twojej listy
black
1200x30mm
B7110149 Belt strap

B7110149

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

Zamknij

B7110149

Belt strap
produkt został dodany do twojej listy
black
1500x30mm

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
produkt został dodany do twojej listy

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zamknij

A9178007

Contacts, male
produkt został dodany do twojej listy
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zamknij

A9178008

Contacts, female
produkt został dodany do twojej listy
gold-plated

Opcje dostosowywania dla B7010107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Przykłady aplikacji
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Protection class
IP 54 opt.
Necessary accessories: sealing kit
Kolor
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
150 mm
Width
100 mm
Height
40 mm
PCB length, top
128 mm
PCB width, top
72 mm
Keypad length
101,9 mm
Keypad width
58,3 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
118 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
