A9520165 FLAT-PACK CASE 120 A
Przewiń

A9520165

FLAT-PACK CASE 120 A

Two-piece case. The front pane,l see accessory A9195201, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply

1 top and base part, assembly kit

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9520165

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory to complete

A9195201 Front panel 120 A

A9195201

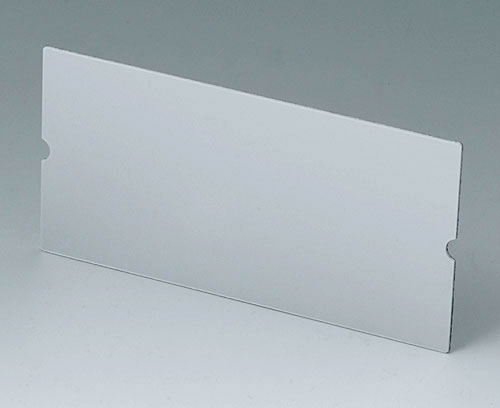

Front panel 120 A Front panel for FLAT-PACK CASE A9520165.

Supply 1 front panel

Zamknij

A9195201

Front panel 120 A
produkt został dodany do twojej listy
Aluminium
matt anodised
113x58x1mm

Accessory "wall/holder"

B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Zamknij

B1350048

Wall suspension elements
produkt został dodany do twojej listy
ABS (UL 94 HB)
pebble grey RAL 7032

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
produkt został dodany do twojej listy
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
produkt został dodany do twojej listy
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0308132

Self-tapping screw 3 x 8 mm (T10)
produkt został dodany do twojej listy
Stainless steel

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zamknij

A9210290

Anti-slide feet 9.5 x 3.8 mm
produkt został dodany do twojej listy
transparent
A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Zamknij

A9250807

Tilt foot bar
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Zamknij

A9250817

Tilt foot bar
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002

Opcje dostosowywania dla A9520165

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Protection class
IP 40
Kolor
Top part off-white RAL 9002,
Bottom part pebble grey RAL 7032
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
120 mm
Width
65 mm
Height
40 mm
PCB length, base
106 mm
PCB width, base
57 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
63 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
