A9061017 HAND-HELD-BOX N, Vers. I
Przewiń

A9061017

HAND-HELD-BOX N, Vers. I

Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version

With battery compartment

Supply

Top and base part, battery compartment lid, assembly kit

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9061017

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Zamknij

A9160003

Plug-in contact, 1 x 9 V (PP3)
produkt został dodany do twojej listy
A9190013 Set of battery clips, 4 x AA

A9190013

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

Zamknij

A9190013

Set of battery clips, 4 x AA
produkt został dodany do twojej listy
Steel
nickel-plated
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Zamknij

A9250250

Battery spacer
produkt został dodany do twojej listy
PE foam
50x25x4mm

Accessory "protection"

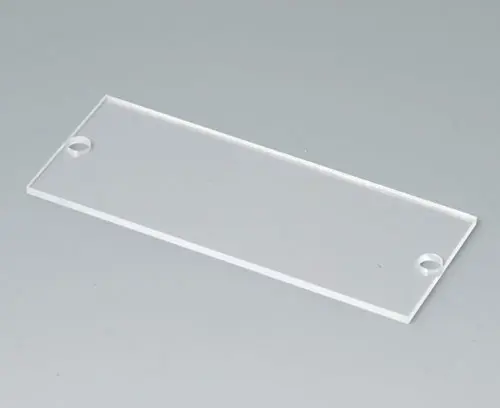

A9161004 Display window N

A9161004

Display window N The display window protects the installed display. For glueing the display window there's an adhesive foil (A9161005) available.

Supply 1 display window

Zamknij

A9161004

Display window N
produkt został dodany do twojej listy
Acrylic glass
transparent
90x36x2mm
A9161005 Adhesive foil N

A9161005

Adhesive foil N Fastening the display window (A9061004).

Supply 1 adhesive foil

Zamknij

A9161005

Adhesive foil N
produkt został dodany do twojej listy

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Zamknij

A9100002

Ring eyelet
produkt został dodany do twojej listy
PA 6
volcano

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
produkt został dodany do twojej listy

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zamknij

A9210290

Anti-slide feet 9.5 x 3.8 mm
produkt został dodany do twojej listy
transparent
A9361009 Tilt foot bar

A9361009

Tilt foot bar For ergonomical canting.

Supply 1 tilt foot bar

Zamknij

A9361009

Tilt foot bar
produkt został dodany do twojej listy
Steel
chromed

Opcje dostosowywania dla A9061017

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Przykłady aplikacji
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Length
180 mm
Width
100 mm
Height
44 mm
PCB length, base
109 mm
PCB width, base
91 mm
PCB length, top
169 mm
PCB width, top
91 mm
Display length, base
65 mm
Display width, base
23 mm
Keypad length
75,1 mm
Keypad width
80 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
169 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
