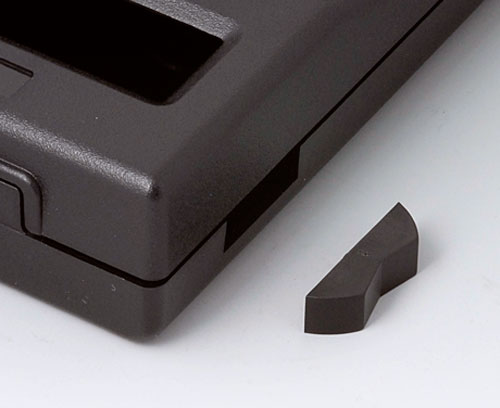

A9160009 Switch cap
Przewiń

A9160009

Switch cap

For rocker switch-application.

Supply

1 switch cap

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9160009

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania

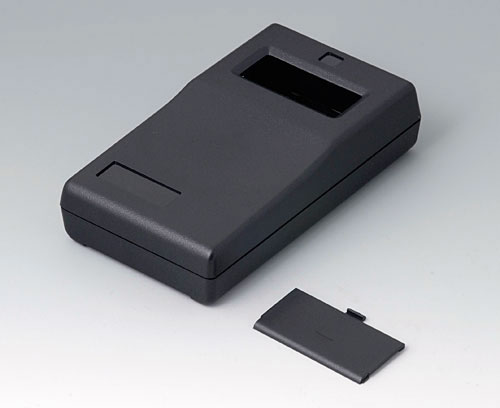

A9060009 HAND-HELD-BOX P, Vers. I

A9060009

HAND-HELD-BOX P, Vers. I Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

Zamknij

A9060009

HAND-HELD-BOX P, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
145x80x36,5mm

Opcje dostosowywania dla A9160009

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Dane zakupowe
Materiał
PA
Kolor
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
0,7 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
