C7115087 Standard DIN rail, Type TH 15
Przewiń

C7115087

Standard DIN rail, Type TH 15

Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply

1 standard DIN rail TH 15

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for C7115087

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria

System components to complete

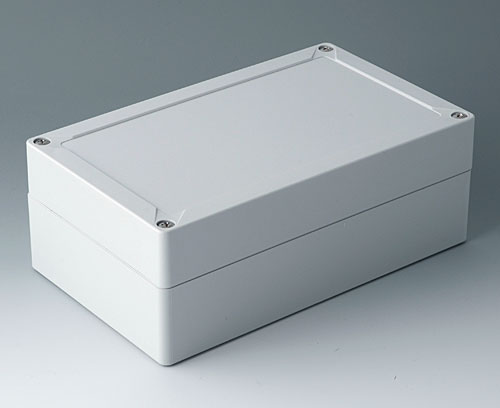

C7020041 IN-BOX

C7020041

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Zamknij

C7020041

IN-BOX
produkt został dodany do twojej listy
ABS (UL 94 HB)
light grey RAL 7035
202x122x75mm
IP 66, IP 67, IK 07
C7020042 IN-BOX

C7020042

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Zamknij

C7020042

IN-BOX
produkt został dodany do twojej listy
PC
light grey RAL 7035
202x122x75mm
IP 66, IP 67, IK 08
C7020044 IN-BOX

C7020044

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Zamknij

C7020044

IN-BOX
produkt został dodany do twojej listy
ABS/PC (UL 94 HB)
transparent
202x122x75mm
IP 66, IP 67, IK 07

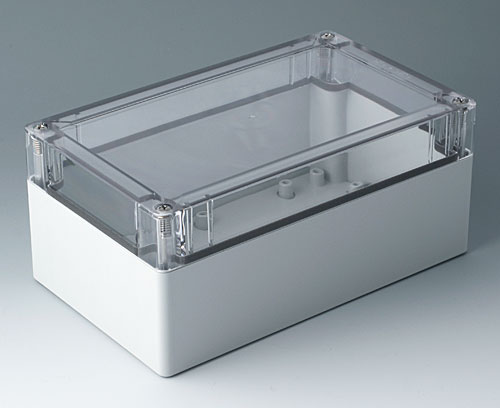

C7020045 IN-BOX

C7020045

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Zamknij

C7020045

IN-BOX
produkt został dodany do twojej listy
PC
transparent
202x122x75mm
IP 66, IP 67, IK 08

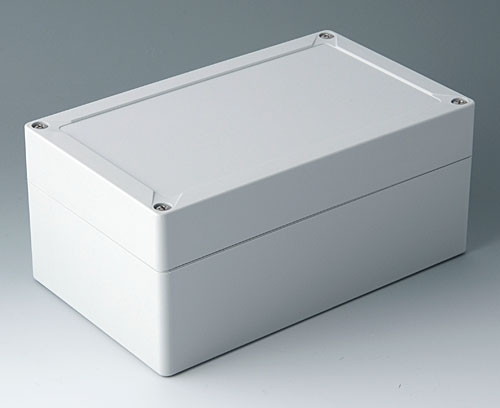

C7020061 IN-BOX

C7020061

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Zamknij

C7020061

IN-BOX
produkt został dodany do twojej listy
ABS (UL 94 HB)
light grey RAL 7035
202x122x90mm
IP 66, IP 67, IK 07
C7020064 IN-BOX

C7020064

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Zamknij

C7020064

IN-BOX
produkt został dodany do twojej listy
ABS/PC (UL 94 HB)
light grey RAL 7035
202x122x90mm
IP 66, IP 67, IK 07
C7020065 IN-BOX

C7020065

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Zamknij

C7020065

IN-BOX
produkt został dodany do twojej listy
PC
light grey RAL 7035
202x122x90mm
IP 66, IP 67, IK 08

Accessory "screws"

C7100167 Screw 3.9 x 9 mm

C7100167

Screw 3.9 x 9 mm For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

Zamknij

C7100167

Screw 3.9 x 9 mm
produkt został dodany do twojej listy
  • Informacje techniczne
  • Dane zakupowe
Materiał
Steel
Standards
RoHS compliant
DIN EN 60715 TH15
REACH compliant
Length
184 mm
Width
15 mm
Height
5,5 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
28 g
Customs tariff number
(OKW product)
72287010
Country of manufacture
Germany
