Minimalna ilość komponentów do skompletowania obudowy:
1 dolna część, wersja I.
1 przednia część (pokrywa lub panel alu).
1 komora baterii i pokrywa.
lub
1 dolna część, wersja II.
1 przednia część (panel ABS lub szklany).
1 komora baterii i pokrywa.
System components to complete

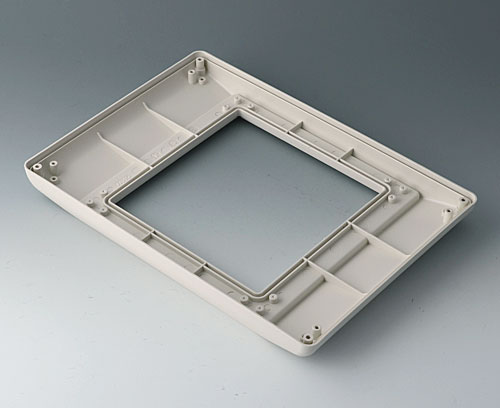

B4046707
Bottom part L flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Zamknij
Bottom part L flat, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046757
Bottom part L high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Zamknij
Bottom part L high, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4146047
Battery compartment and lid L, 5 x AA
Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.
Supply
1 battery compartment and lid, assembly kit
Zamknij
Battery compartment and lid L, 5 x AA
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Zamknij
Sealing L (bottom part - front design)
produkt został dodany do twojej listy
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Zamknij
Sealing L (bottom part - base/bot. panel/bat. comp...)
produkt został dodany do twojej listy
SEBS (TPE)
Minimalna ilość komponentów do skompletowania obudowy:
1 dolna część, wersja I.
1 przednia część (pokrywa lub panel alu).
1 panel dolny z zagłębieniem na dłonie
lub
1 dolna część, wersja II.
1 przednia część (panel ABS lub szklany).
1 panel dolny z zagłębieniem na dłonie
System components to complete
B4046707
Bottom part L flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Zamknij
Bottom part L flat, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046757
Bottom part L high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Zamknij
Bottom part L high, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4146167
Bottom panel with handle recess L
Assembly unit: suitable for bottom part vers. I and II, screw fixing.
Supply
1 bottom panel, assembly kit
Zamknij
Bottom panel with handle recess L
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Zamknij
Sealing L (bottom part - front design)
produkt został dodany do twojej listy
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Zamknij
Sealing L (bottom part - base/bot. panel/bat. comp...)
produkt został dodany do twojej listy
SEBS (TPE)
Minimalna ilość komponentów do skompletowania obudowy:
1 dolna część, wersja I.
1 przednia część (pokrywa lub panel alu).
1 komora na baterie z klapką lub panel dolny z zagłębieniem na dłonie
1 baza - stacja dokująca -
lub
1 dolna część, wersja II.
1 przednia część (panel ABS lub szklany).
1 komora na baterie z klapką lub panel dolny z zagłębieniem na dłonie
1 baza - stacja dokująca -
System components to complete
B4046707
Bottom part L flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Zamknij
Bottom part L flat, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046757
Bottom part L high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Zamknij
Bottom part L high, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4046837
Base L - charging station, case deposit mobile
Assembly unit: Suitable for case with battery compartment or bottom panel with handle recess. Ergonomically designed for desktop and for wall mounting favorable. Can be equipped either for installing the case for desktop applications or with a snap-in mechanism for secure wall mounted and desktop applications. Case position vertically or horizontally, depending on the application - see assembly instruction. Contacts for simple data and charging current transfer as accessories.
Supply
1 base, 1 base cover, 2 covers, assembly kit
Zamknij
Base L - charging station, case deposit mobile
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
183x183x80mm
B4146047
Battery compartment and lid L, 5 x AA
Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.
Supply
1 battery compartment and lid, assembly kit
Zamknij
Battery compartment and lid L, 5 x AA
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
B4146167
Bottom panel with handle recess L
Assembly unit: suitable for bottom part vers. I and II, screw fixing.
Supply
1 bottom panel, assembly kit
Zamknij
Bottom panel with handle recess L
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Zamknij
Sealing L (bottom part - front design)
produkt został dodany do twojej listy
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Zamknij
Sealing L (bottom part - base/bot. panel/bat. comp...)
produkt został dodany do twojej listy
SEBS (TPE)
Minimalna ilość komponentów do skompletowania obudowy:
1 dolna część, wersja I.
1 przednia część (pokrywa lub panel alu).
1 komora na baterie z klapką lub panel dolny z zagłębieniem na dłonie
1 element do zawieszenia na ścianie.
lub
1 dolna część, wersja II.
1 przednia część (panel ABS lub szklany).
1 komora na baterie z klapką lub panel dolny z zagłębieniem na dłonie
1 element do zawieszenia na ścianie.
System components to complete
B4046707
Bottom part L flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Zamknij
Bottom part L flat, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046757
Bottom part L high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Zamknij
Bottom part L high, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4146047
Battery compartment and lid L, 5 x AA
Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.
Supply
1 battery compartment and lid, assembly kit
Zamknij
Battery compartment and lid L, 5 x AA
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
B4146167
Bottom panel with handle recess L
Assembly unit: suitable for bottom part vers. I and II, screw fixing.
Supply
1 bottom panel, assembly kit
Zamknij
Bottom panel with handle recess L
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
B4146247
Wall suspension element L
Hidden wall mounting. While closed, the entire case (version with battery compartment or base plate with handle recess) can be mounted on the wall, fixed and also removed again by means of the wall suspension element.
Supply
1 wall suspension element with snap-in mechanism
Zamknij
Wall suspension element L
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Zamknij
Sealing L (bottom part - front design)
produkt został dodany do twojej listy
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Zamknij
Sealing L (bottom part - base/bot. panel/bat. comp...)
produkt został dodany do twojej listy
SEBS (TPE)
Minimalna ilość komponentów do skompletowania obudowy:
1 dolna część, wersja I.
1 przednia część (pokrywa lub panel alu).
1 baza (przykręcana na stałe)
lub
1 dolna część, wersja II.
1 przednia część (panel ABS lub szklany).
1 baza (przykręcona na stałe)
System components to complete
B4046707
Bottom part L flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Zamknij
Bottom part L flat, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046757
Bottom part L high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Zamknij
Bottom part L high, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4046827
Base L - desk-top -
Assembly unit: for case combinations with open bottom part vers. I or II. Case screwed to base. Assembly screws hidden from view. Ergonomically designed for operating and reading off. Assembly of the operating panel vertically or horizontally, depending on the application, see assembly instruction.
Supply
1 base, 2 covers, assembly kit
Zamknij
Base L - desk-top -
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
183x183x73mm
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Zamknij
Sealing L (bottom part - front design)
produkt został dodany do twojej listy
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Zamknij
Sealing L (bottom part - base/bot. panel/bat. comp...)
produkt został dodany do twojej listy
SEBS (TPE)
Minimalna ilość komponentów do skompletowania obudowy:
1 dolna część, wersja I.
1 przednia część (pokrywa lub panel alu).
1 dolny panel z zatrzaskami.
1 baza – na biurko/sćianę –
lub
1 dolna część, wersja II.
1 przednia część (panel ABS lub szklany).
1 dolny panel z zatrzaskami.
1 baza – na biurko/sćianę –
System components to complete
B4046707
Bottom part L flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Zamknij
Bottom part L flat, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046757
Bottom part L high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Zamknij
Bottom part L high, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4046847
Base L - desk-top/wall -
Assembly unit: for case combinations with bottom panel and snap-in strips. Case snaps into the base in vertical or horizontal position, depending on the application - see assembly instruction. If required, unit can be secured by latch lock. Ergonomically designed for operating and reading off. Direct wall mounting.
Supply
1 base, 2 clips, assembly kit
Zamknij
Base L - desk-top/wall -
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
183x183x73mm
B4146257
Bottom panel with snap-in strips L
Assembly unit: suitable for bottom part vers. I and II, screw fixing.
Supply
1 bottom panel, 2 snap-in strips, assembly kit
Zamknij
Bottom panel with snap-in strips L
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Zamknij
Sealing L (bottom part - front design)
produkt został dodany do twojej listy
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Zamknij
Sealing L (bottom part - base/bot. panel/bat. comp...)
produkt został dodany do twojej listy
SEBS (TPE)
Minimalna ilość komponentów do skompletowania obudowy:
1 dolna część, wersja I.
1 przednia część (pokrywa).
1 dolny panel.
1 mocowanie podtynkowe
lub
1 dolna część, wersja II.
1 przednia część (panel ABS lub szklany).
1 dolny panel z zatrzaskami.
1 mocowanie podtynkowe
System components to complete
B4046707
Bottom part L flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Zamknij
Bottom part L flat, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046757
Bottom part L high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Zamknij
Bottom part L high, version I
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4146257
Bottom panel with snap-in strips L
Assembly unit: suitable for bottom part vers. I and II, screw fixing.
Supply
1 bottom panel, 2 snap-in strips, assembly kit
Zamknij
Bottom panel with snap-in strips L
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
B4146587
Installation assembly kit L, flat
For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.
Version
Holders matches bottom part, flat
Supply
4 holders, assembly kit, design frame
Zamknij
Installation assembly kit L, flat
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
325x251mm
B4146597
Installation assembly kit L, high
For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.
Version
Holders matches bottom part, high
Supply
4 holders, assembly kit, design frame
Zamknij
Installation assembly kit L, high
produkt został dodany do twojej listy
ABS
(UL 94 HB)
off-white RAL 9002
325x251mm
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Zamknij
Sealing L (bottom part - front design)
produkt został dodany do twojej listy
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Zamknij
Sealing L (bottom part - base/bot. panel/bat. comp...)
produkt został dodany do twojej listy
SEBS (TPE)
Opcje dostosowywania dla B4046407
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Akcesoria do obudów
Dodaj do koszyka
