B6800650 Terminal block, block 5.08
Przewiń

B6800650

Terminal block, block 5.08

PCB terminal block, 5.08. 3-pin.

Supply

1 piece

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6800650

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for

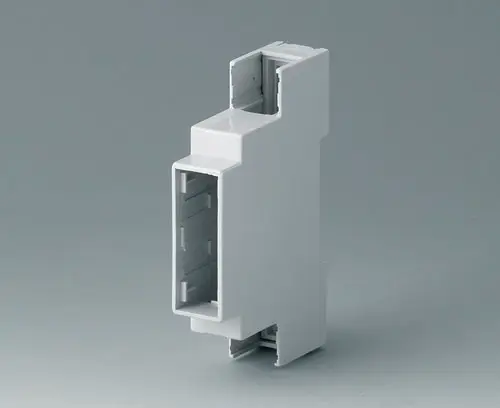

B6700100 RAILTEC C, 1 module, Vers. I

B6700100

RAILTEC C, 1 module, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Zamknij

B6700100

RAILTEC C, 1 module, Vers. I
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey
17,5x90x58mm

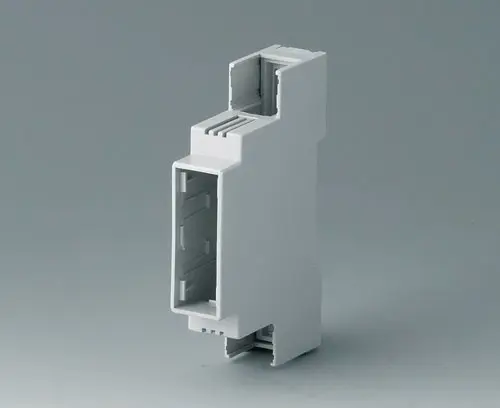

B6700102 RAILTEC C, 1 module, Vers. II

B6700102

RAILTEC C, 1 module, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Zamknij

B6700102

RAILTEC C, 1 module, Vers. II
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey
17,5x90x58mm

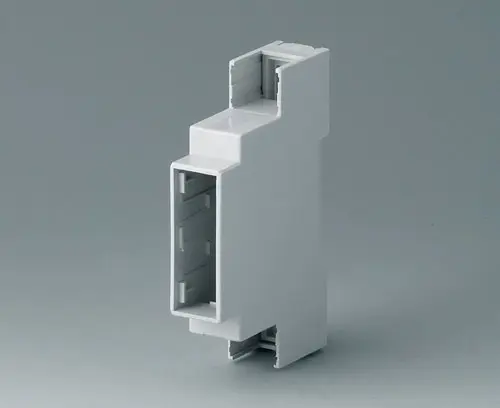

B6700104 RAILTEC C, 1 module, Vers. III

B6700104

RAILTEC C, 1 module, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Front panel see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

Zamknij

B6700104

RAILTEC C, 1 module, Vers. III
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey
17,5x90x58mm

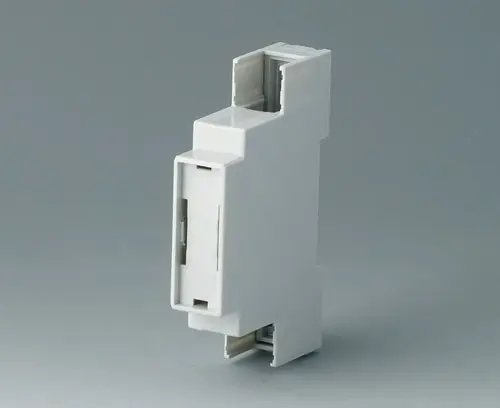

B6700106 RAILTEC C, 1 module, Vers. IV

B6700106

RAILTEC C, 1 module, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Zamknij

B6700106

RAILTEC C, 1 module, Vers. IV
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey
17,5x90x58mm
  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
PA 68 (UL 94 V-0)
Kolor
light grey
Standards
RoHS compliant
REACH compliant
Pitch
5.08 mm
Poles
3
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
