B9004908 Bottom and top part DM
Przewiń

B9004908

Bottom and top part DM

Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DM as separate article necessary.

Supply

1 top and bottom part DM, 1 self-tapping screw

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B9004908

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

System components to complete

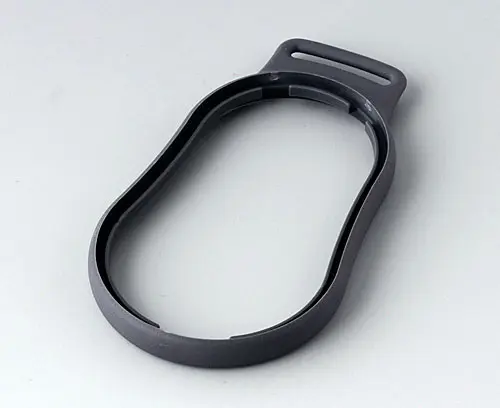

B9004302 Intermediate ring DM

B9004302

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DM

Zamknij

B9004302

Intermediate ring DM
produkt został dodany do twojej listy
TPE
lava

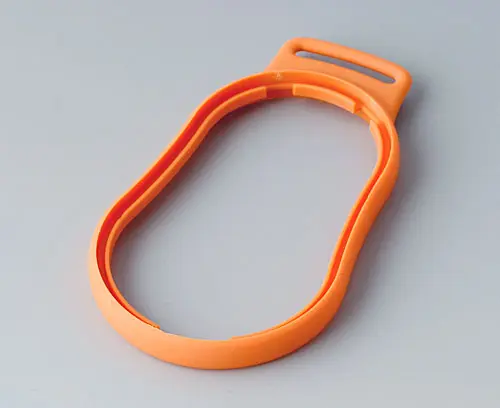

B9004303 Intermediate ring DM

B9004303

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DM

Zamknij

B9004303

Intermediate ring DM
produkt został dodany do twojej listy
TPE
orange

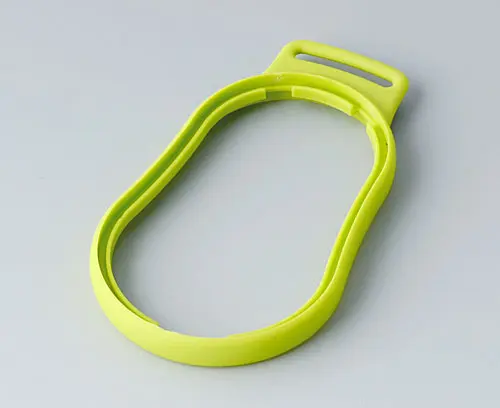

B9004304 Intermediate ring DM

B9004304

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DM

Zamknij

B9004304

Intermediate ring DM
produkt został dodany do twojej listy
TPE
green
B9004305 Intermediate ring DM

B9004305

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DM

Zamknij

B9004305

Intermediate ring DM
produkt został dodany do twojej listy
TPE
blue
B9004307 Intermediate ring DM

B9004307

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DM

Zamknij

B9004307

Intermediate ring DM
produkt został dodany do twojej listy
SEBS (TPE)
off-white RAL 9002

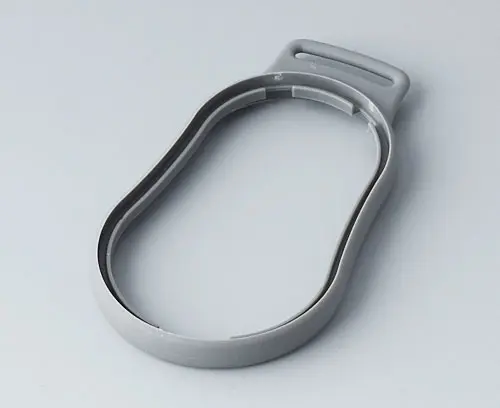

B9004308 Intermediate ring DM

B9004308

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DM

Zamknij

B9004308

Intermediate ring DM
produkt został dodany do twojej listy
TPE
volcano

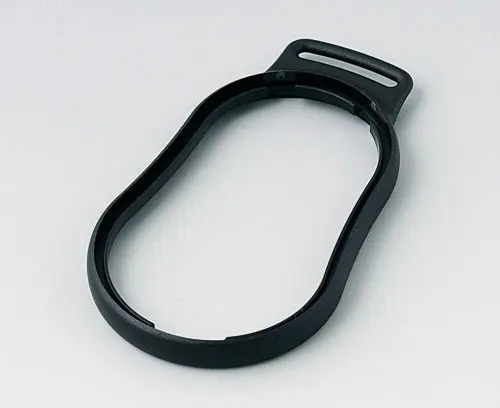

B9004309 Intermediate ring DM

B9004309

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together.

Supply 1 intermediate ring DM

Zamknij

B9004309

Intermediate ring DM
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005

Accessory "carrying"

A9164001 Key ring

A9164001

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

Zamknij

A9164001

Key ring
produkt został dodany do twojej listy
Steel
nickel-plated
20,5mm
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Zamknij

B9100063

Carrying strap, textile lanyard
produkt został dodany do twojej listy
black
860mm
B9100073 Carrying strap, textile lanyard

B9100073

Carrying strap, textile lanyard Textile lanyard with snap safety clip.

Supply 1 lanyard

Zamknij

B9100073

Carrying strap, textile lanyard
produkt został dodany do twojej listy
black
914x16mm

Opcje dostosowywania dla B9004908

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
lava
Standards
RoHS compliant
REACH compliant
Length
70 mm
Width
44 mm
Height
16 mm
PCB length, base
50 mm
PCB width, base
38 mm
Keypad length
52,5 mm
Keypad width
23,7 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
9 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
