A9250819 Tilt foot bar
Przewiń

A9250819

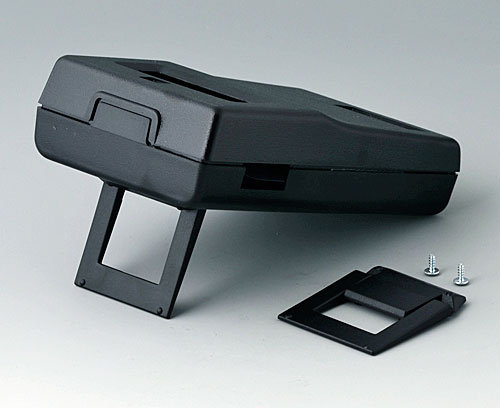

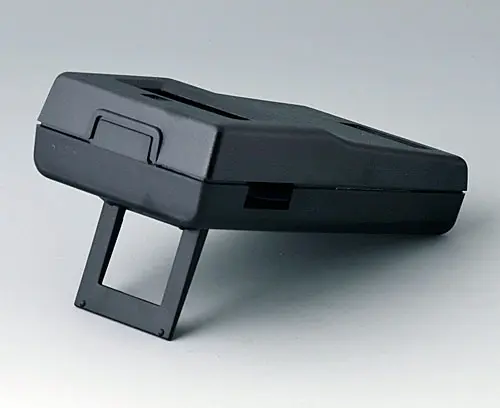

Tilt foot bar

Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply

1 tilt foot bar, assembly kit

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9250819

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

System components to complete

A9060009 HAND-HELD-BOX P, Vers. I

A9060009

HAND-HELD-BOX P, Vers. I Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

Zamknij

A9060009

HAND-HELD-BOX P, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
145x80x36,5mm
A9060019 HAND-HELD-BOX P, Vers. II

A9060019

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

Zamknij

A9060019

HAND-HELD-BOX P, Vers. II
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
145x80x36,5mm
A9062019 HAND-HELD-BOX M, Vers. I

A9062019

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C)

Supply Top and base part, battery compartment lid, assembly kit

Zamknij

A9062019

HAND-HELD-BOX M, Vers. I
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
145x80x38,5mm

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zamknij

A9207150

Anti-slide feet 6.5 x 2 mm
produkt został dodany do twojej listy
transparent

Opcje dostosowywania dla A9250819

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
