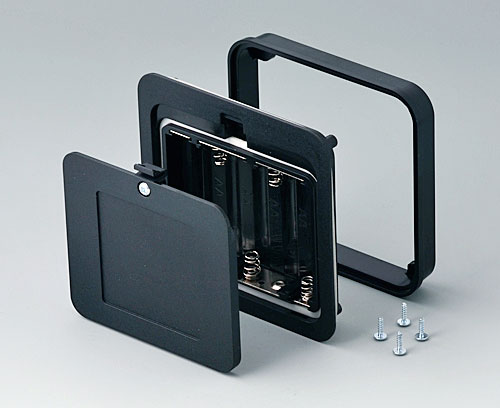

A9338119 Battery compartment kit, 5 x AA

A9338119

Battery compartment kit, 5 x AA

For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply

1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

  • Opcje dostosowywania

Opcje dostosowywania dla A9338119

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Protection class
Kolor
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
93 mm
Width
98 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
68 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
