C2320919 Cable gland  M20x1.5, pressure compensation

C2320919

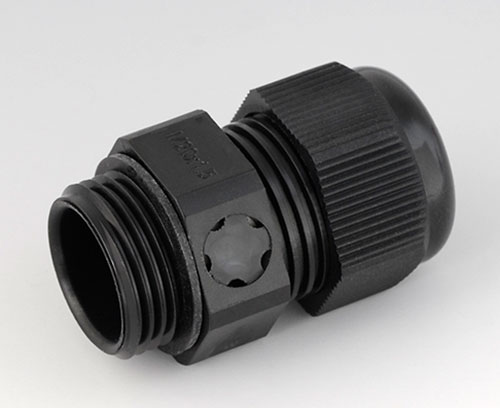

Cable gland M20x1.5, pressure compensation

Easy-to-fit cable gland with metric thread and integrated pressure compensation element. For protection against condensation in hermetically sealed electrical and electronic enclosures in the event of temperature and pressure fluctuations. Constant ventilation and adjustment of the internal pressure. The membrane does not function if it is blocked by dust and/or submerged in water. Water entry point: > 0.2 bar (for the membrane), RQ = 57 l/h (theoretical air flow rate at 0.07 bar).
Good cable-friendly strain relief and sealing by means of clamping blades. Counternut available as an accessory. High protection class IP 68. Clamping range: ø 8 - 13 mm cables.

Supply

1 cable gland

  • Informacje techniczne
  • Dane zakupowe
Materiał
Protection class
Kolor
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
10 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
