B6504110 RAILTEC B, 6 modules, Vers. V
Przewiń

B6504110

RAILTEC B, 6 modules, Vers. V

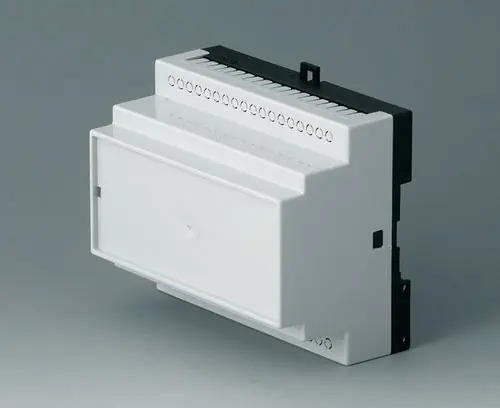

Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version

With perforations for max. 36 terminal blocks 5.0 or 2 plug headers 18-pin

Supply

1 base part with locking clip, 1 top part

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6504110

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "wall/holder"

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

Zamknij

B6600334

Wall suspension elements
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black

Accessory "terminals"

B6604111 Terminal block, block 5.0

B6604111

Terminal block, block 5.0 PCB terminal block, 5.0. 18-pin.

Supply 1 piece

Zamknij

B6604111

Terminal block, block 5.0
produkt został dodany do twojej listy
PA 68 (UL 94 V-0)
B6604222 Plug header, block 5.08

B6604222

Plug header, block 5.08 Male terminal block, 5.08. 18-pin.

Supply 1 piece

Zamknij

B6604222

Plug header, block 5.08
produkt został dodany do twojej listy
PA 68 (UL 94 V-0)
B6604223 Plug header, block 5.08

B6604223

Plug header, block 5.08 Female terminal block, 5.08. 18-pin.

Supply 1 piece

Zamknij

B6604223

Plug header, block 5.08
produkt został dodany do twojej listy
PA 68 (UL 94 V-0)

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
produkt został dodany do twojej listy

Accessory

B6604100 Lid, 6 modules

B6604100

Lid, 6 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Zamknij

B6604100

Lid, 6 modules
produkt został dodany do twojej listy
PC (UL 94 V-0)
transparent

Opcje dostosowywania dla B6504110

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
PC (UL 94 V-0)
Top part
PPO (UL 94 V-0)
Bottom part
Kolor
Top part light grey RAL 7035,
Bottom part black,
Locking clip black
Standards
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
Width
105 mm
Height
86 mm
Depth
59 mm
PCB length, base
82,4 mm
PCB width, base
99,2 mm
Poles
≤ 36
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
77 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
