B6513111 RAILTEC B, 4 modules, Vers. XI
Przewiń

B6513111

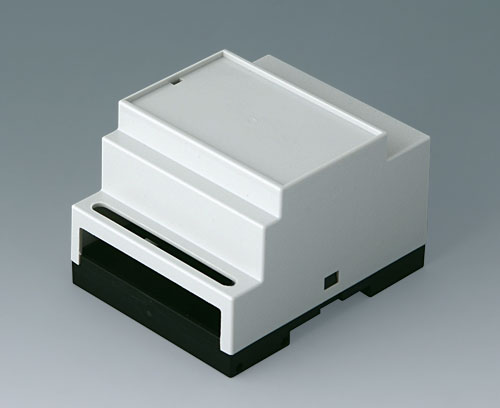

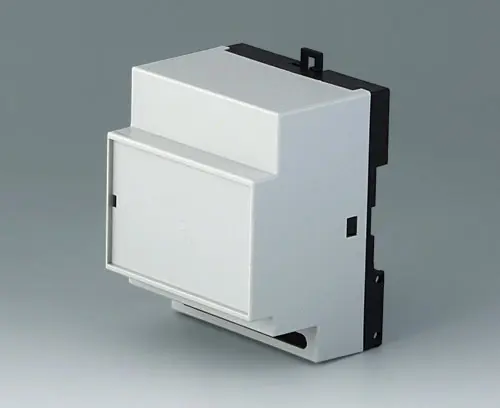

RAILTEC B, 4 modules, Vers. XI

Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version

For terminal blocks 5.0 / 5.08 (12 terminals max.)

Supply

1 base part with locking clip, 1 top part

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6513111

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "wall/holder"

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

Zamknij

B6600334

Wall suspension elements
produkt został dodany do twojej listy
PPO (UL 94 V-0)
black

Accessory "terminals"

B6603111 Terminal block, block 5.0

B6603111

Terminal block, block 5.0 PCB terminal block, 5.0. 12-pin.

Supply 1 piece

Zamknij

B6603111

Terminal block, block 5.0
produkt został dodany do twojej listy
PA 68 (UL 94 V-0)

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
produkt został dodany do twojej listy

Accessory

B6603100 Lid, 4 modules

B6603100

Lid, 4 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Zamknij

B6603100

Lid, 4 modules
produkt został dodany do twojej listy
PC (UL 94 V-0)
transparent

Opcje dostosowywania dla B6513111

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
PC (UL 94 V-0)
Top part
PPO (UL 94 V-0)
Bottom part
Kolor
Top part light grey RAL 7035,
Bottom part black,
Locking clip black
Standards
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
Width
70 mm
Height
86 mm
Depth
58 mm
PCB length, base
82 mm
PCB width, base
64 mm
Poles
≤ 12
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
51 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
