B6522821 Side panel with ventilation slots
Przewiń

B6522821

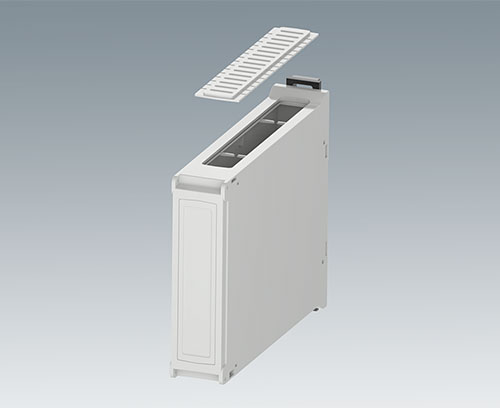

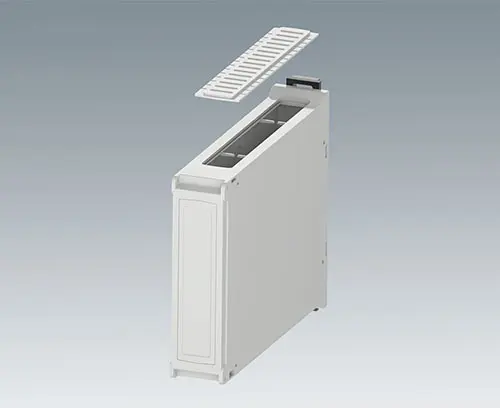

Side panel with ventilation slots

Side panel with ventilation slots for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply

in packaging units of 10 pieces

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6522821

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
B6522101 RAILTEC BP, M22, with closed side panels

B6522101

RAILTEC BP, M22, with closed side panels DIN rail enclosure with pluggable side panels and front panel. Connection options on three sides. For plug headers max. 2 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version with closed side panels

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 closed side panels, 1 front panel, 2 locking clips)

Zamknij

B6522101

RAILTEC BP, M22, with closed side panels
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey RAL 7035
95x23x113mm
B6522102 RAILTEC BP, M22, closed/with ventilation slots

B6522102

RAILTEC BP, M22, closed/with ventilation slots DIN rail enclosure with pluggable side panels (1 side panel closed, 1 side panel with ventilation slots) and front panel. For plug headers max. 1 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version 1 side panel closed, 1 side panel with ventilation slots

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 1 side panel closed, 1 side panel with ventilation slots, 1 front panel, 2 locking clips)

Zamknij

B6522102

RAILTEC BP, M22, closed/with ventilation slots
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey RAL 7035
95x23x113mm
B6522103 RAILTEC BP, M22, with ventilation slots

B6522103

RAILTEC BP, M22, with ventilation slots DIN rail enclosure with 2 pluggable side panels with ventilation slots for increased heat dissipation and front panel. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version 2 side panels with ventilation slots

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 side panels with ventilation slots, 1 front panel, 2 locking clips)

Zamknij

B6522103

RAILTEC BP, M22, with ventilation slots
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey RAL 7035
95x23x113mm
  • Informacje techniczne
  • Dane zakupowe
Materiał
PC (UL 94 V-0)
Kolor
light grey RAL 7035
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
