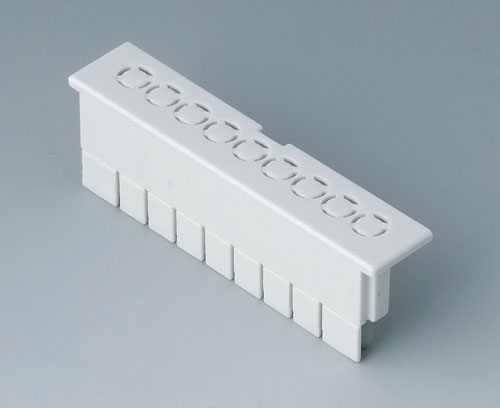

B6608143 Terminal guards, flat
Przewiń

B6608143

Terminal guards, flat

Easy assembly through snap-in installation of the case parts.

Version

Perforated, for block 5.0

Supply

1 piece

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6608143

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania
B6502121 RAILTEC B, 3 modules, Vers. VI

B6502121

RAILTEC B, 3 modules, Vers. VI Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Zamknij

B6502121

RAILTEC B, 3 modules, Vers. VI
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey RAL 7035
52,5x90x58mm
B6504121 RAILTEC B, 6 modules, Vers. VI

B6504121

RAILTEC B, 6 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Zamknij

B6504121

RAILTEC B, 6 modules, Vers. VI
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey RAL 7035
105x90x58mm
B6504229 RAILTEC B, 6 modules, Vers. low profile

B6504229

RAILTEC B, 6 modules, Vers. low profile Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Zamknij

B6504229

RAILTEC B, 6 modules, Vers. low profile
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey RAL 7035
105x89,6x31,25mm
B6505121 RAILTEC B, 9 modules, Vers. VI

B6505121

RAILTEC B, 9 modules, Vers. VI Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Zamknij

B6505121

RAILTEC B, 9 modules, Vers. VI
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey RAL 7035
157x90x58mm
B6505229 RAILTEC B, 9 modules, Vers. low profile

B6505229

RAILTEC B, 9 modules, Vers. low profile Enclosure with open connection sides in flat version - for max. 6 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Zamknij

B6505229

RAILTEC B, 9 modules, Vers. low profile
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey RAL 7035
157,5x89,6x31,25mm
B6506121 RAILTEC B, 12 modules, Vers. VI

B6506121

RAILTEC B, 12 modules, Vers. VI Enclosure with open connection sides - for max. 16 terminal guards in flat version, 8 terminal guards in high version or 8 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Zamknij

B6506121

RAILTEC B, 12 modules, Vers. VI
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm

Opcje dostosowywania dla B6608143

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
PC (UL 94 V-0)
Kolor
light grey
Standards
RoHS compliant
REACH compliant
Pitch
5.0 mm
Poles
9
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
