B6622101 Hinged cover
Przewiń

B6622101

Hinged cover

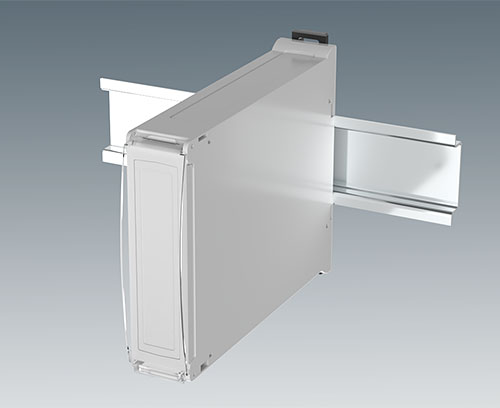

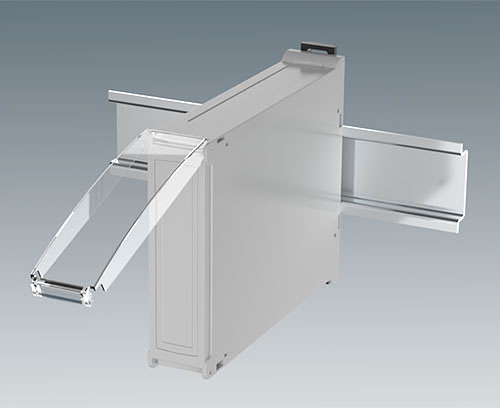

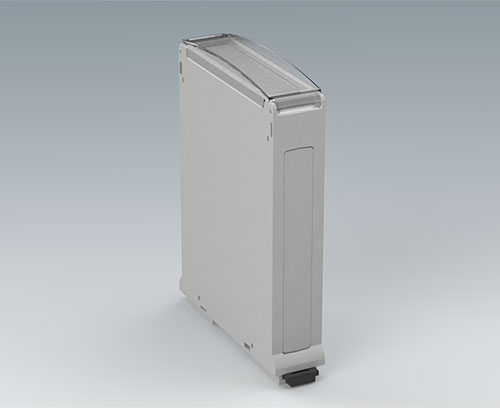

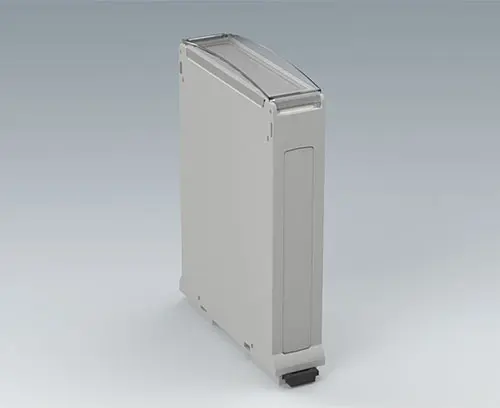

Hinged convex cover for RAILTEC BP, M22. Can be swivelled up or down. Protects electronics, interfaces and/or operating elements.

Minimum order quantity: 10 pieces or multiples

Supply

in packaging units of 10 pieces

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6622101

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania
B6522101 RAILTEC BP, M22, with closed side panels

B6522101

RAILTEC BP, M22, with closed side panels DIN rail enclosure with pluggable side panels and front panel. Connection options on three sides. For plug headers max. 2 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version with closed side panels

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 closed side panels, 1 front panel, 2 locking clips)

Zamknij

B6522101

RAILTEC BP, M22, with closed side panels
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey RAL 7035
95x23x113mm
B6522102 RAILTEC BP, M22, closed/with ventilation slots

B6522102

RAILTEC BP, M22, closed/with ventilation slots DIN rail enclosure with pluggable side panels (1 side panel closed, 1 side panel with ventilation slots) and front panel. For plug headers max. 1 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version 1 side panel closed, 1 side panel with ventilation slots

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 1 side panel closed, 1 side panel with ventilation slots, 1 front panel, 2 locking clips)

Zamknij

B6522102

RAILTEC BP, M22, closed/with ventilation slots
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey RAL 7035
95x23x113mm
B6522103 RAILTEC BP, M22, with ventilation slots

B6522103

RAILTEC BP, M22, with ventilation slots DIN rail enclosure with 2 pluggable side panels with ventilation slots for increased heat dissipation and front panel. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version 2 side panels with ventilation slots

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 side panels with ventilation slots, 1 front panel, 2 locking clips)

Zamknij

B6522103

RAILTEC BP, M22, with ventilation slots
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey RAL 7035
95x23x113mm

Opcje dostosowywania dla B6622101

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Dane zakupowe
Kolor
transparent
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
3 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
