B6700106 RAILTEC C, 1 module, Vers. IV
Przewiń

B6700106

RAILTEC C, 1 module, Vers. IV

Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version

Front closed, connection side with free through passage

Supply

1 bottom part, 2 clips, 1 top part

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6700106

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "wall/holder"

B6811542 Adapter

B6811542

Adapter Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).

Supply 1 piece

Zamknij

B6811542

Adapter
produkt został dodany do twojej listy
PA 6 (UL 94 V-0)
green

Accessory "terminals"

B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

Zamknij

B6606222

Plug header, block 5.08
produkt został dodany do twojej listy
PA 6 (UL 94 V-0)
B6606223 Plug header, block 5.08

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

Zamknij

B6606223

Plug header, block 5.08
produkt został dodany do twojej listy
PA 6 (UL 94 V-0)
B6800650 Terminal block, block 5.08

B6800650

Terminal block, block 5.08 PCB terminal block, 5.08. 3-pin.

Supply 1 piece

Zamknij

B6800650

Terminal block, block 5.08
produkt został dodany do twojej listy
PA 68 (UL 94 V-0)
light grey

Accessory "terminal guards"

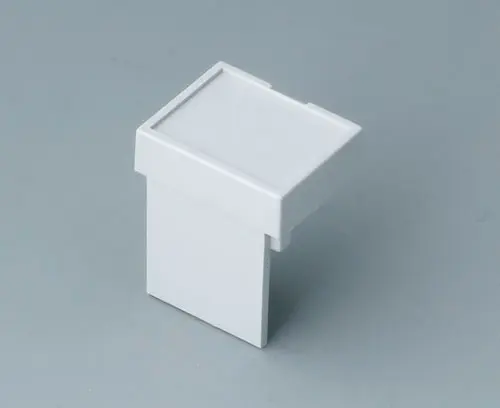

B6800111 Terminal guards, closed

B6800111

Terminal guards, closed Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Zamknij

B6800111

Terminal guards, closed
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey

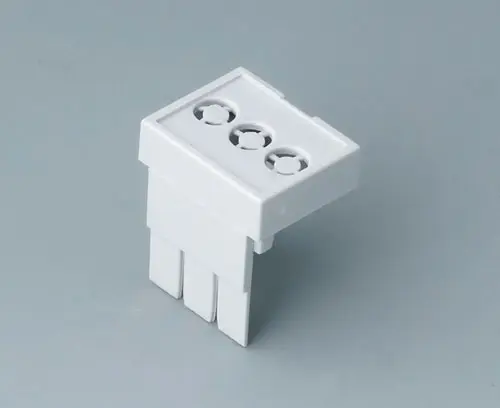

B6800112 Terminal guards, perforated, 5.08

B6800112

Terminal guards, perforated, 5.08 Easy assembly through snap-in installation of the case parts.

Version 3 poles (designed to allow the use of terminals, block 5,08)

Supply 1 piece

Zamknij

B6800112

Terminal guards, perforated, 5.08
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey
B6800113 Terminal guards, with holes, 5.08

B6800113

Terminal guards, with holes, 5.08 Easy assembly through snap-in installation of the case parts.

Version 3 poles (designed to allow the use of terminals, block 5,08)

Supply 1 piece

Zamknij

B6800113

Terminal guards, with holes, 5.08
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey

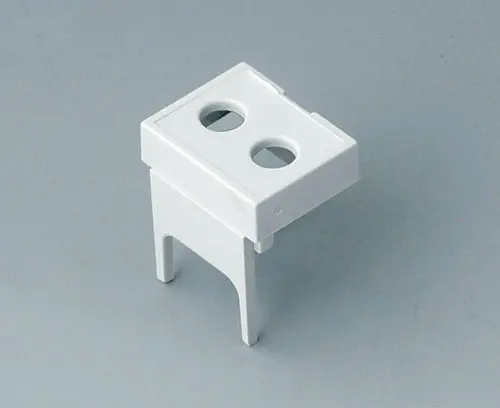

B6800114 Terminal guards, with holes, 7.5 & 7.62

B6800114

Terminal guards, with holes, 7.5 & 7.62 Easy assembly through snap-in installation of the case parts.

Version 2 poles (designed to allow the use of terminals, block 7,5 & 7,62)

Supply 1 piece

Zamknij

B6800114

Terminal guards, with holes, 7.5 & 7.62
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey
B6800115 Terminal guards, with holes, 10.16

B6800115

Terminal guards, with holes, 10.16 Easy assembly through snap-in installation of the case parts.

Version 2 poles (designed to allow the use of terminals, block 10,16).

Supply 1 piece

Zamknij

B6800115

Terminal guards, with holes, 10.16
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey

Accessory

B6800100 Front panel, 1 module

B6800100

Front panel, 1 module Snap-in.

Supply 1 front panel

Zamknij

B6800100

Front panel, 1 module
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey
14x42mm

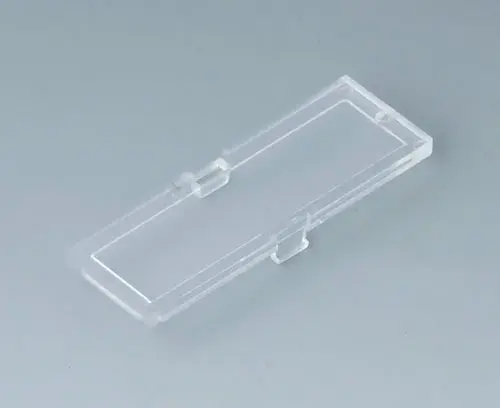

B6800200 Front panel, 1 module

B6800200

Front panel, 1 module Snap-in.

Supply 1 front panel

Zamknij

B6800200

Front panel, 1 module
produkt został dodany do twojej listy
PC (UL 94 V-0)
transparent
14x42mm

Opcje dostosowywania dla B6700106

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
PC (UL 94 V-0)
Kolor
Bottom and top part light grey,
Locking clip black/translucent
Standards
RoHS compliant
DIN EN 60715 TH35
REACH compliant
Width
17,5 mm
Height
90 mm
Depth
58 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
27 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
