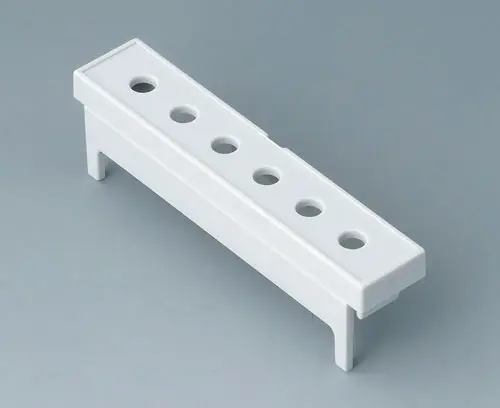

B6803115 Terminal guards, with holes, 10.16
Przewiń

B6803115

Terminal guards, with holes, 10.16

Easy assembly through snap-in installation of the case parts.

Version

6 poles (designed to allow the use of terminals, block 10.16)

Supply

1 piece

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B6803115

Please select the product details you would like to include in the PDF.

Zamknij
  • To be used for
  • Opcje dostosowywania
B6703100 RAILTEC C, 4 modules, Vers. I

B6703100

RAILTEC C, 4 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Zamknij

B6703100

RAILTEC C, 4 modules, Vers. I
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey
71x90x58mm
B6703102 RAILTEC C, 4 modules, Vers. II

B6703102

RAILTEC C, 4 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Zamknij

B6703102

RAILTEC C, 4 modules, Vers. II
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey
71x90x58mm
B6703106 RAILTEC C, 4 modules, Vers. IV

B6703106

RAILTEC C, 4 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Zamknij

B6703106

RAILTEC C, 4 modules, Vers. IV
produkt został dodany do twojej listy
PC (UL 94 V-0)
light grey
71x90x58mm

Opcje dostosowywania dla B6803115

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
PC (UL 94 V-0)
Kolor
light grey
Standards
RoHS compliant
REACH compliant
Pitch
10.16 mm
Poles
6
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
