A9404333 SHELL-TYPE CASES V 85, Vers. I
Przewiń

A9404333

SHELL-TYPE CASES V 85, Vers. I

Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

Without battery compartment

Supply

1 top and base part, assembly kit

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9404333

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory to complete

A9104111 Front / rear panel V 85

A9104111

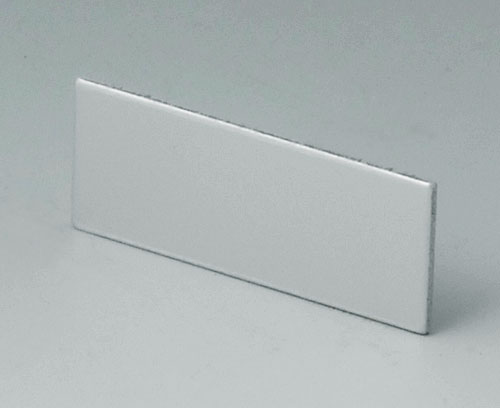

Front / rear panel V 85 Front panel for SHELL-TYPE CASE V and O. For case A940433.

Supply 1 front panel

Zamknij

A9104111

Front / rear panel V 85
produkt został dodany do twojej listy
Aluminium
matt anodised
36x14,6x1mm
A9104113 Front / rear panel V 85

A9104113

Front / rear panel V 85 Front panel for SHELL-TYPE CASE V and O. For case A940433.

Supply 1 front panel

Zamknij

A9104113

Front / rear panel V 85
produkt został dodany do twojej listy
Acrylic glass
red transparent
36x14,6x1mm

Accessory "protection"

A9104073 Contact-strips V, G 85

A9104073

Contact-strips V, G 85 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Zamknij

A9104073

Contact-strips V, G 85
produkt został dodany do twojej listy
Aluminium

Accessory "carrying"

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Zamknij

A9100001

Ring eyelet
produkt został dodany do twojej listy
PA 6
volcano
A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Zamknij

A9172107

Belt/Pocket clip
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
62x30mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
produkt został dodany do twojej listy

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zamknij

A9207150

Anti-slide feet 6.5 x 2 mm
produkt został dodany do twojej listy
transparent

Opcje dostosowywania dla A9404333

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Width
45 mm
Depth
85 mm
Height
22 mm
PCB length, base
71 mm
PCB width, base
38 mm
PCB length, top
71 mm
PCB width, top
38 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
31 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
