A9406443 SHELL-TYPE CASES V 110, Vers. I
Przewiń

A9406443

SHELL-TYPE CASES V 110, Vers. I

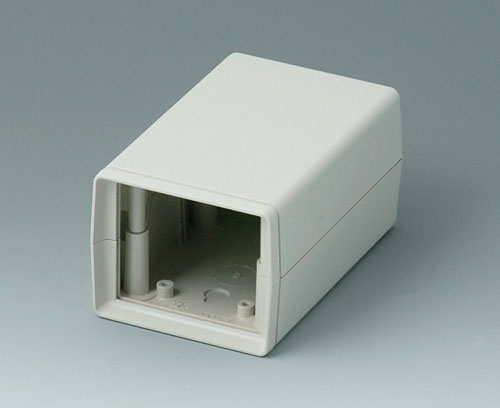

Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

Without battery compartment

Supply

1 top and base part, assembly kit

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A9406443

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory to complete

A9106223 Front / rear panel V 110

A9106223

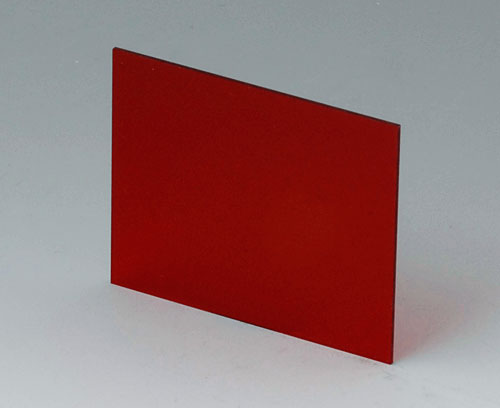

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940644.

Supply 1 front panel

Zamknij

A9106223

Front / rear panel V 110
produkt został dodany do twojej listy
Acrylic glass
red transparent
59,3x49x1mm
A9107221 Front / rear panel V 110

A9107221

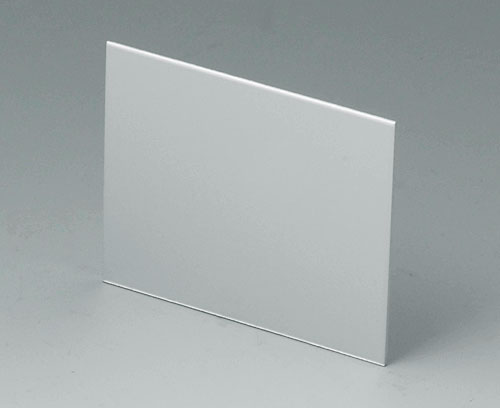

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940644.

Supply 1 front panel

Zamknij

A9107221

Front / rear panel V 110
produkt został dodany do twojej listy
Aluminium
matt anodised
59,3x49x1mm

Accessory "protection"

A9106095 Contact-strips V, G 110

A9106095

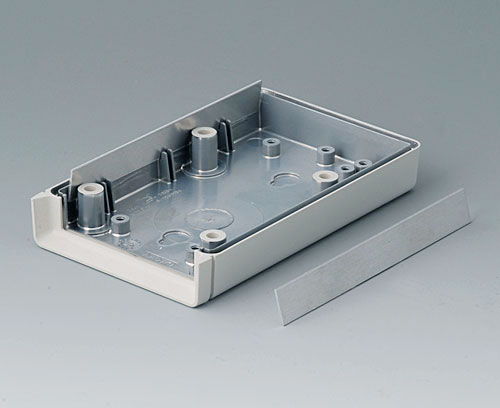

Contact-strips V, G 110 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Zamknij

A9106095

Contact-strips V, G 110
produkt został dodany do twojej listy
Aluminium

Accessory "wall/holder"

A9204108 Wall mounting brackets

A9204108

Wall mounting brackets Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.

Supply 4 wall mounting brackets

Zamknij

A9204108

Wall mounting brackets
produkt został dodany do twojej listy
PA 6
pebble grey RAL 7032
B1350048 Wall suspension elements

B1350048

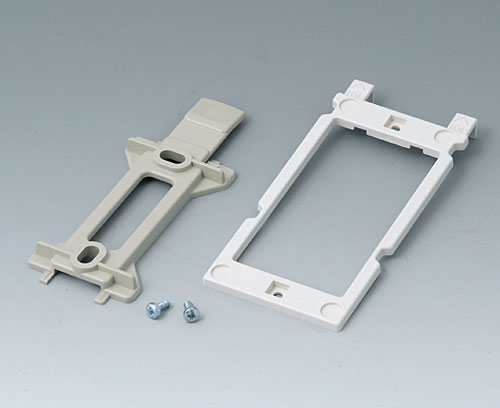

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Zamknij

B1350048

Wall suspension elements
produkt został dodany do twojej listy
ABS (UL 94 HB)
pebble grey RAL 7032

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Zamknij

A9100002

Ring eyelet
produkt został dodany do twojej listy
PA 6
volcano
A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Zamknij

A9172107

Belt/Pocket clip
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
62x30mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
produkt został dodany do twojej listy

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zamknij

A9207150

Anti-slide feet 6.5 x 2 mm
produkt został dodany do twojej listy
transparent
A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Zamknij

A9250807

Tilt foot bar
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Zamknij

A9250817

Tilt foot bar
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002

Opcje dostosowywania dla A9406443

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Width
72 mm
Depth
114 mm
Height
57 mm
PCB length, base
69 mm
PCB width, base
54 mm
PCB length, top
99 mm
PCB width, top
54 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
101 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
